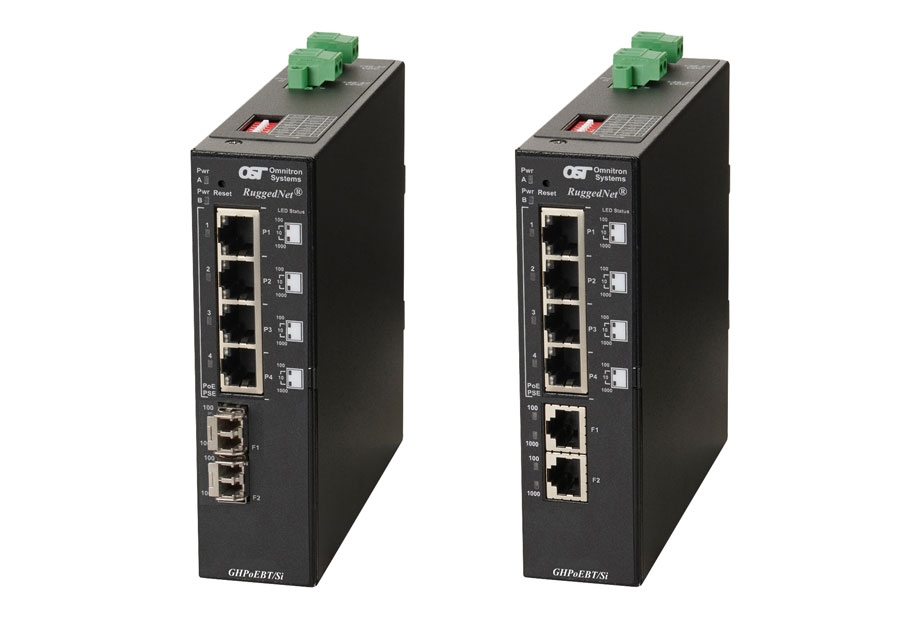

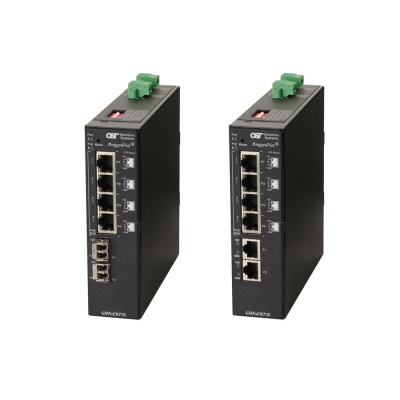

The RuggedNet GHPoEBT/Si is an unmanaged Industrial Ethernet switch that features two 1/10G uplink ports and four 10/100/1000 RJ-45 IEEE 802.3bt 60W or 100W PoE user ports. The RuggedNet PoE switches are standard Layer 2 Ethernet switches that forward frames to any port based on their MAC address. ...Read more


Features
  • Unmanaged 60W/100W PoE Gigabit Ethernet Switches
  • Supports the IEEE 802.3bt 60W or 100W
  • Dual Device mode for operating as two separate switches
  • Directed Switch mode prevents flooding of multicast video traffic
  • Configurable PoE Power Reset
icons

  • Description
  • Features
  • Specifications
  • Applications
  • Ordering
  • Documents

The RuggedNet GHPoEBT/Si is an unmanaged Industrial Ethernet switch that features two 1/10G uplink ports and four 10/100/1000 RJ-45 IEEE 802.3bt 60W or 100W PoE user ports.

The RuggedNet PoE switches are standard Layer 2 Ethernet switches that forward frames to any port based on their MAC address.

All models support Directed Switch mode, which directs multicast traffic (such as video) only to the appropriate uplink port, preventing multicast traffic from flooding other network ports.

Models with two fiber or two copper uplink ports support daisy-chain configurations or redundant uplinks for critical applications that require protection and sub 50ms restoration in the event of an uplink failure.

Models with two fiber or two copper uplink ports also support Dual Device mode that enables the switches to operate as two independent and isolated Ethernet switches. In Dual Device mode, the switches provide separate and independent data traffic paths between each uplink and a pair of user ports.

Models are available with fixed ST, SC, and LC fiber connectors or Small Form Pluggable (SFP) transceiver receptacles. Fiber ports support multimode or single-mode and dual fiber or single-fiber with distances up to 140km. SFP models support a variety of distances in standard, CWDM and DWDM wavelengths.

The switches automatically negotiate and deliver the power level required by a Powered Device (PD) partner. Depending on the model of the RuggedNet PoE switch, the switch can deliver up to 60 or 100 Watts of power per user port.

The switches feature a PoE power reset function that enables the attached PD device, such as a camera or access point, to be re-initialized remotely, eliminating the need for costly truck rolls to remote PD sites.

All models can be wall or rack mounted using a wall mount bracket and shelf or DIN-rail mounted using the included DIN-rail mounting clip. They are available with single or dual DC input power options.

Description RuggedNet® GHPoEBT/Si (60/100W BT)
10/100/1000BASE-T with Gigabit Fiber or Copper Uplinks
Ruggedized Unmanaged IEEE 802.3bt PoE Ethernet Switch
Standard Compliances

IEEE 802.3,

IEEE 802.3af (15.40 watts max),

IEEE 802.3at (30 watts max),

IEEE 802.3bt (60 and 100 watts max)
Regulatory Compliances

Safety: UL 62368-1, UL 60950-1,

             IEC 62368-1, IEC 60950-1,

             EN 62368-1, EN 60950-1,

             CAN/CSA C22.2 No. 62368-1-14, CAN/CSA C22.2 No. 60950-1,

             CE Mark, UKCA

EMC:    EN 55032/24 CE Emissions/Immunity,

             IEC 61000-6-4 Industrial Emissions,

             IEC 61000-6-2 Industrial Immunity

EMI:     CISPR 32,

             FCC 47 Part 15 Subpart B Class A

EMS:    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV,

             IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m (on UTP cabling) and 20 V/m (on STP cabling)

             IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV,

             IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV,

             IEC 61000-4-6 CS: Signal: 10 V, IEC 61000-4-8 ( Magnetic Field), 30A/m,

             IEC 61000-4-11 (General Immunity in Industrial Environments)

IP Rating: IP40 Protection

ACT: TAA, BAA, NDAA
Environmental REACH, RoHS and WEEE
PoE Modes IEEE Alternate A (Alt A)
4-Pair
Frame Size Up to 10,240 bytes
Port Types

Copper: RJ-45: 10/100/1000BASE-T

Fiber:     Fixed: ST, SC, LC 1000BASE-X Fiber

               SFP:   10/100/1000BASE-T SGMII Copper Transceiver or

                          100BASE-X SGMII Fiber Transceiver or

                          1000BASE-X SERDES Fiber Transceivers
Cable Types
Copper: EIA/TIA 568A/B, Cat 5 UTP and higher
   Fiber:  Multimode: 50/125, 62.5/125μm
               Single-mode: 9/125μm
DC Power Requirements 60W BT Models:
+46 to +57VDC;
4.46A @ 56VDC
2 Pin Terminal (isolated)		 100W BT Models:
+46 to +57VDC;
7.31A @ 56VDC
2 Pin Terminal (isolated)
Dimensions
(W x D X H)		 1.5” x 5.5” x 5.5” (38.1 mm x 139.7 mm x 139.7 mm)
Weight 170 lbs.; 772 grams
Operating Temperature Extended:   -40 to 75°C
Storage:      -40 to 80°C
Humidity 5% to 95% (non-condensing)
Altitude -100m to 4,000m (operational)
MTBF (hrs) 273,000
Warranty 5 year product warranty with 24/7/365 free Technical Support



Power / Voltage Requirements and Specifications per IEEE

Description

IEEE 802.3af 15W PoE

IEEE 802.3at 30W PoE+

IEEE 802.3.bt 60W PoE

(Type 3)

IEEE 802.3bt 100W PoE

(Type 4)
Power Supply Voltage Range 46.0 to 57.0 VDC 51.0 to 57.0 VDC 51.0 to 57.0 VDC 53.0 to 57.0 VDC
Voltage Range at PSE port Output 44.0 to 56.0 VDC 50.0 to 56.0 VDC 50.0 to 56.0 VDC 52.0 to 56.0 VDC
Maximum Power from PoE/PSE port 15.4 watts 30 watts 60 watts 100 watts
Minimum Voltage at PoE/PD port input* 37.0 VDC 42.5 VDC 42.5 VDC 41.1 VDC
Minimum Power at PoE/PD port* 12.95 watts 25.5 watts 51 watts 71 watts
* at 100 meters using Cat5

The RuggedNet GHPoEBT/Si replaces the GHPoE/Si and is recommended for all new designs.

  • Unmanaged 60W/100W PoE Gigabit Ethernet Switches
  • Supports the IEEE 802.3bt 60W or 100W
  • Dual Device mode for operating as two separate switches
  • Directed Switch mode prevents flooding of multicast video traffic
  • Configurable PoE Power Reset
  • Uplink redundancy on models with two uplink ports
  • Two 10/100/1000 copper or 100M*/1G fiber uplink ports
  • Four 10/100/1000 copper PoE user ports
  • ST, SC and LC fixed fiber ports or standard, CWDM or DWDM Gigabit SFP transceivers
  • Single or dual DC power for redundancy
  • Wall, Rack and DIN-rail mountable
  • Fan-less design for long life
  • Industrial (-40 to 75°C) operating temperature
  • TAA, BAA and NDAA compliant, and Made in the USA
  • Free 24/7/365 Technical Support

*100Mbps supported with 100M SGMII SFP Transceivers

Dual Device Mode Application

This Dual Device feature is extremely useful when two isolated networks domains share a single network distribution location. The example below depicts a scenario where a surveillance security (purple) network and a Wi-Fi (green) network are sharing a single hub distribution location. Using the two uplinks and the Dual Switch mode facilitates using a single PoE switch driving both the Cameras and the Wi-Fi Access Points while maintaining isolation between the networks.

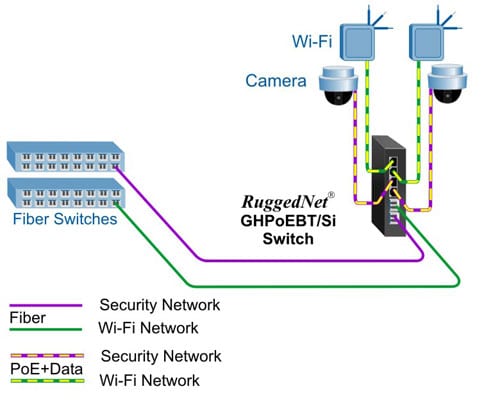

Dual Media Converter Mode 3200 GHPoE Si GHPoEBT Si

Daisy Chain Application

This example demonstrates the daisy chain capabilities of the RuggedNet PoE switches. In this application each RuggedNet switch connects to its neighboring switch via its uplink ports. The daisy chain can continue to additional switches using this method of connectivity.

Each RuggedNet switch provides connectivity to the fiber links, and power to IP cameras and Wi-Fi access points at each location along the daisy chain.

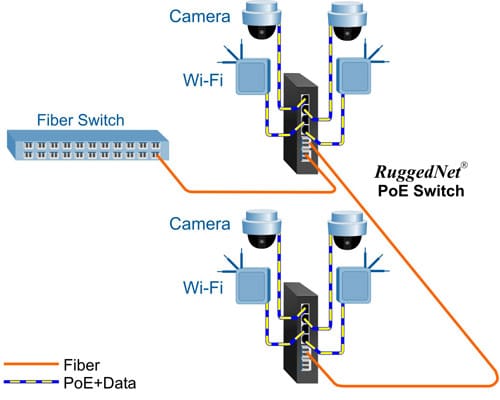

Industrial Manufacturing Application 3200 ghpoe si

Step 1: Choose the Base Part Number (xxxx-x-xx-pZ)

RuggedNet GHPoEBT/Si IEEE 802.3bt 60W Models
Fiber
Type		DistanceConnector TypeTx/Rx
Lambda
(nm)		Min. Tx
Power
(dBm)		Max. Tx
Power
(dBm)		Min. Rx
Power
(dBm)		Max. Rx
Power
(dBm)		Min
Atten
(dB)		Link
Budget
(dB)
STSCLCSFPRJ-45
MM/DF 220/550m1 3200B-0-14-pZ 3202B-0-14-pZ 3206B-0-14-pZ - - 850/850 -10 -4 -17 -3 - 7
MM/DF (x2) 220/550m1 - - 3206B-0-24-pZ - - 850/850 -10 -4 -17 -3 - 7
MM/DF 2km - 3202B-6-14-pZ - - - 1310/1310 -9.5 -3 -19.5 -3 - 10
SM/DF 12km 3201B-1-14-pZ 3203B-1-14-pZ 3207B-1-14-pZ - - 1310/1310 -9.5 -3 -19.5 -3 - 10
SM/DF (x2) 12km - - 3207B-1-24-pZ - - 1310/1310 -9.5 -3 -19.5 -3 - 10
SM/DF 34km - 3203B-2-14-pZ - - - 1310/1310 -5 0 -23 -3 3 18
SM/DF 80km - 3203B-3-14-pZ - - - 1550/1550 -5 0 -23 -3 3 18
SM/DF 110km - 3203B-4-14-pZ - - - 1550/1550 0 5 -24 -3 8 24
SM/DF 140km - 3203B-5-14-pZ - - - 1550/1550 2 5 -28 -8 13 30
MM/SF2 220/550m1 - 3210B-0-14-pZ - - - 1310/1550 -9 -3 -18 -3 - 9
MM/SF2 220/550m1 - 3211B-0-14-pZ - - - 1550/1310 -9 -3 -18 -3 - 9
SM/SF2 20km
 - 3210B-1-14-pZ - - - 1310/1550 -9.5 -3 -20 -3 - 10.5
SM/SF2 20km
 - 3211B-1-14-pZ - - - 1550/1310 -9.5 -3 -20 -3 - 10.5
SM/SF2 40km
 - 3210B-2-14-pZ - - - 1310/1550 -3 0 -20 -3 3 17
SM/SF2 40km
 - 3211B-2-14-pZ - - - 1550/1310 -3 0 -20 -3 3 17
SFP (x1) - - - - 3219B-0-14-pZ - - - - - - - -
SFP (x2) - - - - 3219B-0-24-pZ - - - - - - - -
RJ-45 (x2) 100m - - - - 3219B-1-24-pZ - - - - - - -

1 62.5/125µm, 100/140µm multimode fiber up to 220m. 50/125µm multimode fiber up to 550m.

2 When using single-fiber (SF) models, the Tx wavelength on one end has to match the Rx wavelength on the other.

MM = Multimode, SM = Single-mode, DF = Dual Fiber, SF = Single-fiber

Contact Omnitron for other fiber options. Order the appropriate SFPs separately. Visit the Optical Transceivers web page.

Step 2: Choose the Power Option (xxxx-x-xx-pZ)

 1 = Single DC 2-Pin Terminal Power Connector
 2 = Dual DC 2-Pin Terminal Power Connectors

Operating Temperature Range

 Z = Extended temperature (-40 to 75°C)



Step 1: Choose the Base Part Number (xxxx-x-xx-pZ)

RuggedNet GHPoEBT/Si IEEE 802.3bt 100W Models
Fiber
Type		DistanceConnector TypeTx/Rx
Lambda
(nm)		Min. Tx
Power
(dBm)		Max. Tx
Power
(dBm)		Min. Rx
Power
(dBm)		Max. Rx
Power
(dBm)		Min
Atten
(dB)		Link
Budget
(dB)
STSCLCSFPRJ-45
MM/DF 220/550m1 3240B-0-14-pZ 3242B-0-14-pZ 3246B-0-14-pZ - - 850/850 -10 -4 -17 -3 - 7
MM/DF (x2) 220/550m1 - - 3246B-0-24-pZ - - 850/850 -10 -4 -17 -3 - 7
MM/DF 2km - 3242B-6-14-pZ - - - 1310/1310 -9.5 -3 -19.5 -3 - 10
SM/DF 12km 3241B-1-14-pZ 3243B-1-14-pZ 3247B-1-14-pZ - - 1310/1310 -9.5 -3 -19.5 -3 - 10
SM/DF (x2) 12km - - 3247B-1-24-pZ - - 1310/1310 -9.5 -3 -19.5 -3 - 10
SM/DF 34km - 3243B-2-14-pZ - - - 1310/1310 -5 0 -23 -3 3 18
SM/DF 80km - 3243B-3-14-pZ - - - 1550/1550 -5 0 -23 -3 3 18
SM/DF 110km - 3243B-4-14-pZ - - - 1550/1550 0 5 -24 -3 8 24
SM/DF 140km - 3243B-5-14-pZ - - - 1550/1550 2 5 -28 -8 13 30
MM/SF2 220/550m1 - 3250B-0-14-pZ - - - 1310/1550 -9 -3 -18 -3 - 9
MM/SF2 220/550m1 - 3251B-0-14-pZ - - - 1550/1310 -9 -3 -18 -3 - 9
SM/SF2 20km
 - 3251B-1-14-pZ - - - 1310/1550 -9.5 -3 -20 -3 - 10.5
SM/SF2 20km
 - 3251B-1-14-pZ - - - 1550/1310 -9.5 -3 -20 -3 - 10.5
SM/SF2 40km
 - 3251B-2-14-pZ - - - 1310/1550 -3 0 -20 -3 3 17
SM/SF2 40km
 - 3251B-2-14-pZ - - - 1550/1310 -3 0 -20 -3 3 17
SFP (x1) - - - - 3259B-0-14-pZ - - - - - - - -
SFP (x2) - - - - 3259B-0-24-pZ - - - - - - - -
RJ-45 (x2) 100m - - - - 3259B-1-24-pZ - - - - - - -

1 62.5/125µm, 100/140µm multimode fiber up to 220m. 50/125µm multimode fiber up to 550m.

2 When using single-fiber (SF) models, the Tx wavelength on one end has to match the Rx wavelength on the other.

MM = Multimode, SM = Single-mode, DF = Dual Fiber, SF = Single-fiber

 Contact Omnitron for other fiber options. Order the appropriate SFPs separately. Visit the Optical Transceivers web page.

Step 2: Choose the Power Option (xxxx-x-xx-pZ)

 1 = Single DC 2-Pin Terminal Power Connector
 2 = Dual DC 2-Pin Terminal Power Connectors

Operating Temperature Range

 Z = Extended temperature (-40 to 75°C)





Accessories


Model NumberDescription Wall Mount Plate
 8260-3  Wall Mounting Plate
 8260-0  19" rack mount shelf



Power Supply Selection Guide

ModelProduct Operating Temperature RangeWatts RequiredIndustrial Power Supply Model and Operating Temperature Range
-25 to 70C-30 to 70C
GHPoEBT/Si 60W Commercial / Wide / Extended 250 watts 9170-PS-480 -
GHPoEBT/Si 100W Commercial / Wide 410 watts 9170-PS-480 -
GHPoEBT/Si 100W Extended 410 watts -  9170-PS-960

RuggedNet GHPoEBT/Si (Data Sheet)

RuggedNet GHPoEBT/Si (User Manual)



Wall Mount Plate (User Manual)

9170-PS-480-Industrial-Power-Supply

9170-PS-960-Industrial-Power-Supply
