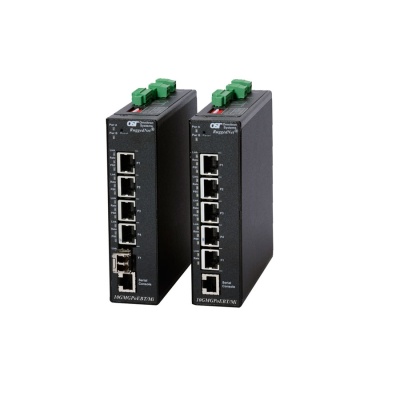

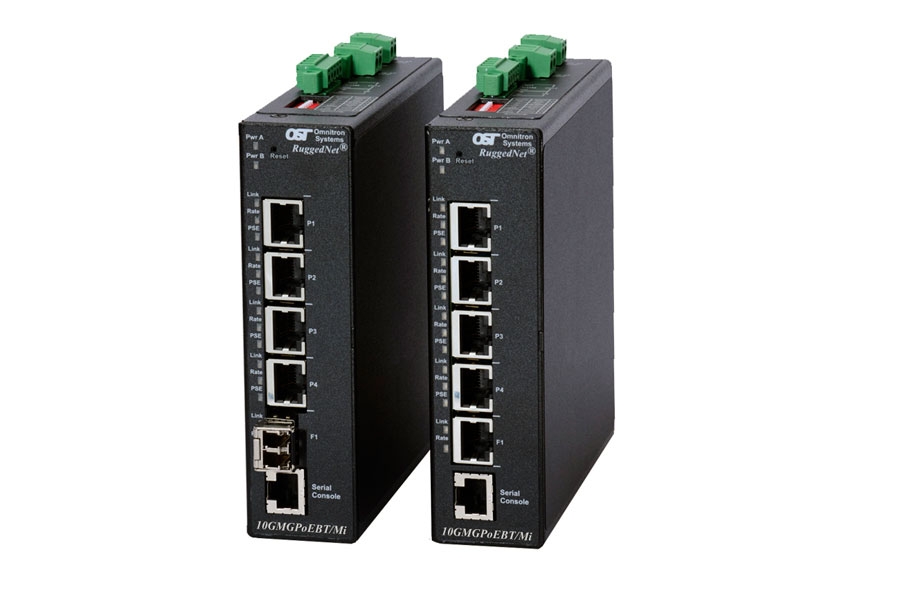

The RuggedNet 10GMGPoE+/Mi and 10GMGPoEBT/Mi are managed industrial multi-gigabit Ethernet switches featuring one 1/10G SFP/SFP+ or multi-gigabit/multi-rate RJ-45 uplink port and two multi-gigabit/multi-rate RJ-45 and two 10/100/1000 PoE RJ-45 user ports.
The RJ-45 user ports support multi-gigabit/multi-rate speeds of 100Mbps, 1Gbps, 2.5Gbps, 5Gbps and 10Gbps, supporting frame sizes up to 10,240 bytes.
The 10GMGPoE+/Mi supports IEEE 802.3at (15 and 30W) and the 10GMGPoEBT/Mi supports IEEE 802.3bt (60 and 100W) per user port depending on the model.
All models support Directed Switch mode, which directs multicast traffic (such as video) only to the appropriate uplink port, preventing multicast traffic from flooding other ports.
The switches feature a PoE Power Reset function that enables the user to remotely power-cycle and reset each attached PD, such as a camera or access point. They also feature a configurable Heartbeat Reset function that automatically pings the attached PDs and automatically power cycles and resets the PDs when detecting a heartbeat loss. The Power Reset and the Heartbeat Reset functions save time and expense by eliminating the need to dispatch manpower to remote network sites.
The switches feature a Small Form Pluggable (SFP) transceiver receptacle port supporting a variety of copper and fiber transceivers. It supports 10/100/1000BASE-T, 1000BASE-T, 100M/1G/2.5G/5G/10GBASE-T multi-gigabit copper transceivers and 1G and 10G multimode or single-mode fiber, dual or single-fiber transceivers in standard, CWDM and DWDM wavelengths.
The mode of operation can be configured using easily accessible DIP-switches or using Web, Telnet, SSH, SNMPv1/v2c/v3 or Serial Console management interfaces. IPv4 and IPv6 are supported on the switches. These management interfaces provide access to filtering and security options, such as, broadcast storm prevention, IGMP, IEEE 802.1x, RADIUS, TACACS+ and Access Control Lists. Email notification and alarm reporting is provided.
An alarm relay is available to detect user configured events. The relay contact can be configured for normally open or normally closed operation. One alarm input is available for detecting external events such as door open or closed.
All models can be wall or rack mounted using a wall mount bracket and shelf or DIN-rail mounted using the included DIN-rail mounting clip. They are available with dual DC input power.
9666-0-14-2Z, 9666-1-14-2Z, 9667-0-14-2Z, 9667-1-14-2Z, 9668-0-14-2Z, 9668-1-14-2Z,multigig
Power / Voltage Requirements and Specifications
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
- Managed Industrial 10G multi-gigabit/multi-rate PoE Ethernet Switch
- Models support IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt (60W and 100W)
- Modbus Industrial Protocol for device management and monitoring
- Supports IPv4 and IPv6
- IEEE 802.1x, RADIUS, TACACS+ and ACL
- Email Notification
- IEEE 802.1Q VLAN tagging and IEEE 802.1ad Q-in-Q
- Broadcast / Multicast / Unicast Storm Prevention
- DHCP Relay Option 82, DHCPv6 and DHCPv6 Relay
- IPv4 IGMP and IPv6 MLD snooping
- Rate Limiting, Queue prioritization and Class of Service
- IEEE 802.1ab Link Layer Discovery Protocol
- Static MAC configuration and blocking of unknown Unicast/Multicast addresses
- Heartbeat signal to verify connectivity to the PD and Configurable PoE Power Reset
- PoE power management with LLDP MED and MDI TLV, and PoE Power Multi-Day Scheduler
- Management via Web, Telnet, SSH, SNMPv1/v2c/v3 (Omnitron’s NetOutlook® or third-party) and serial interfaces
- Easy to use Hierarchical Command Line Interface
- Directed Switch mode to prevent port flooding
- Free 24/7/365 Technical Support
ADDITIONAL FEATURES
- One SFP/SFP+ transceiver uplink port or multi-gigabit/multi-rate copper port
- 1/10G SFP/SFP+ standard/CWDM/DWDM fiber transceiver uplink port
- Uplink port supports copper and fiber SFP/SFP+ transceivers
- Multi-gigabit/multi-rate ports supports speeds of 100Mbps, 1Gbps, 2.5Gbps, 5Gbps and 10Gbps
- Two multi-gigabit/multi-rate RJ-45 PoE and two 10/100/1000 RJ-45 PoE user ports
- Alarm contacts and sensors
- Dual DC power for redundancy
- Wall, Rack and DIN-rail mountable
- Fan-less design for long life
- Industrial (-40 to 75°C) operating temperature
- TAA, BAA and NDAA compliant, and Made in the USA
Security and Wireless

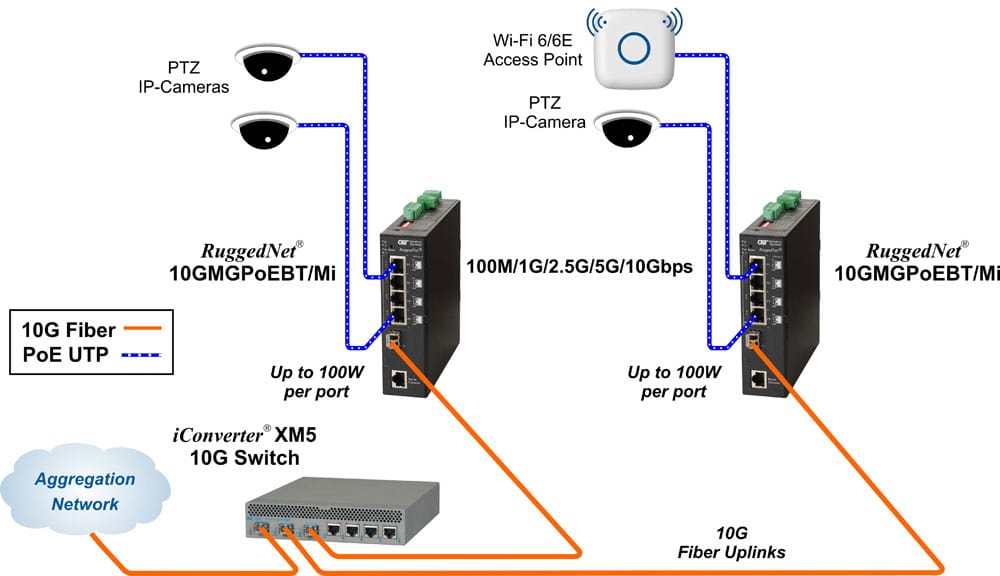

In this application example, outdoor IP surveillance cameras and Wi-Fi 6/6E Access Points are installed throughout a large facility. An iConverter® XM5 aggregation fiber switch is used to distribute a fiber link from a control room to RuggedNet switches with a fiber SFP port.
The RuggedNet 10GMGPoEBT/Mi provides a managed solution with up to 100W of Power-over-Ethernet (PoE) to an IP camera and Wireless Access Point at each location, each of which can be located up to 100 meters from the switches.
When less power is required the RuggedNet 10GMGPoE+/Mi can be used to deliver 30 watt of power per port.
The camera and access point have full bandwidth capability utilizing the 10G fiber uplink port on each 10GMGPoEBT/Mi switch.
Modbus Application
Modbus is one of the oldest and most popular communication protocols used in industrial automation. Modbus-TCP is the Modbus RTU protocol with a TCP interface running on Ethernet. Omnitron’s Modbus-aware switches seamlessly connect IT (Information Technology Networks) and OT (Operational Technology Networks).
| RuggedNet 10GMGPoE+/Mi Models | |
|---|---|
| Model Number | Description |
| 9666-0-14-2Z | 10GMGPoE+/Mi - 1 x SFP+ + 2 x 100/1G/2.5G/5G/10G RJ-45 30W per port + 2 x 10/100/1000 RJ-45 30W per port, dual power inputs (2-pin terminal block), industrial temperature range -40 to 75°C |
| 9666-1-14-2Z | 10GMGPoE+/Mi - 1 x 100/1G/2.5G/5G/10G RJ-45 + 2 x 100/1G/2.5G/5G/10G RJ-45 30W per port + 2 x 10/100/1000 RJ-45 30W per port, dual power inputs (2-pin terminal block), industrial temperature range -40 to 75°C |
| Contact Omnitron for other fiber options. Order the appropriate SFPs separately. Visit the Optical Transceivers web page. | |
| RuggedNet 10GMGPoEBT/Mi Models | |
|---|---|
| Model Number | Description |
| 9667-0-14-2Z | 10GMGPoEBT/Mi - 1 x SFP+ + 2 x 100/1G/2.5G/5G/10G RJ-45 60W per port + 2 x 10/100/1000 RJ-45 60W per port, dual power inputs (2-pin terminal block), industrial temperature range -40 to 75°C |
| 9667-1-14-2Z | 10GMGPoEBT/Mi - 1 x 100/1G/2.5G/5G/10G RJ-45 + 2 x 100/1G/2.5G/5G/10G RJ-45 60W per port + 2 x 10/100/1000 RJ-45 60W per port, dual power inputs (2-pin terminal block), industrial temperature range -40 to 75°C |
| 9668-0-14-2Z | 10GMGPoEBT/Mi - 1 x SFP+ + 2 x 100/1G/2.5G/5G/10G RJ-45 100W per port + 2 x 10/100/1000 RJ-45 100W per port, dual power inputs (2-pin terminal block), industrial temperature range -40 to 75°C |
| 9668-1-14-2z | 10GMGPoEBT/Mi - 1 x 100/1G/2.5G/5G/10G RJ-45 + 2 x 100/1G/2.5G/5G/10G RJ-45 100W per port + 2 x 10/100/1000 RJ-45 100W per port, dual power inputs (2-pin terminal block), industrial temperature range -40 to 75°C |
| Contact Omnitron for other fiber options. Order the appropriate SFPs separately. Visit the Optical Transceivers web page. | |
| Accessories | ||
|---|---|---|
| Model Number | Description |  |
| 8260-3 | Wall Mounting Plate | |
| 8260-0 | 19" rack mount shelf | |
