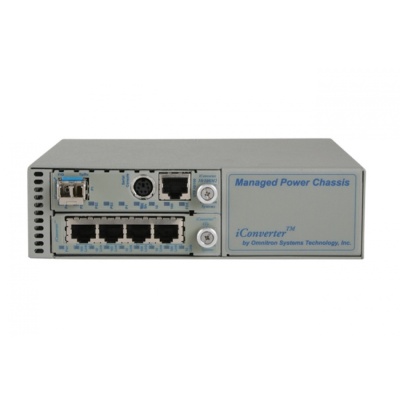

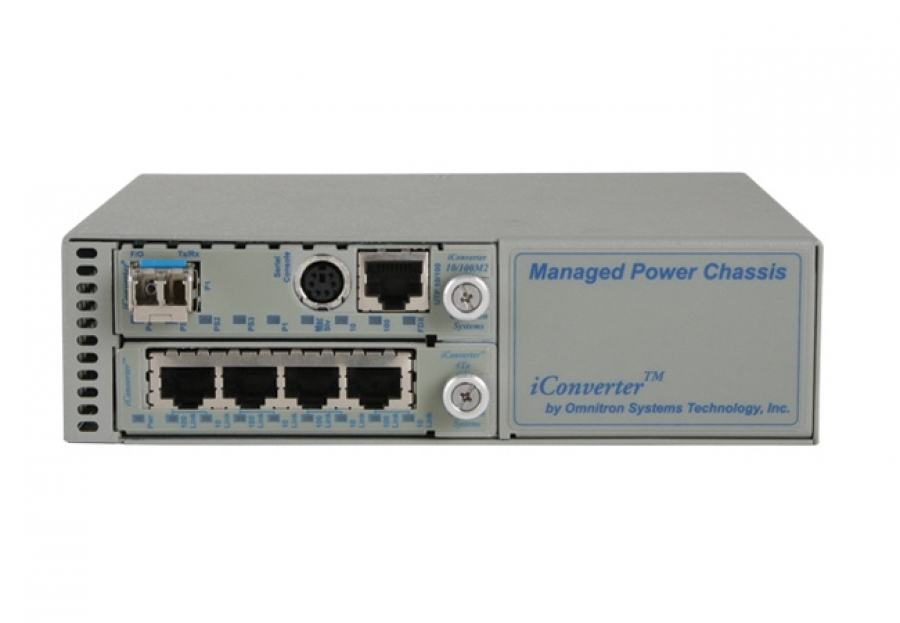

The iConverter 2-Module Power Chassis is a compact, versatile chassis featuring a single internal universal AC or 18-60VDC power supply. The chassis provides housing for all iConverter multi-service platform modules.
The 2-Module Chassis features a backplane that enables sharing of Ethernet data between two installed iConverter modules that are equipped with Ethernet backplane ports. This enables the chassis to support a variety of networking configurations. Installing an iConverter copper-to-fiber module and a four-port switch module provides a fiber uplink and five 10/100 or 10/100/1000 user ports.
Equipped with an iConverter management module or Network Interface Device (NID), the 2-Module Chassis provides a secure, local or remote managed solution capable of supporting advanced Ethernet services for Enterprise and Service Provider networks. It can be remotely managed via IP-based SNMP or Telnet.
The 2-Module Chassis is ideal for extending a fiber network connection across a campus. The 2-Module Chassis provides a carrier-grade solution; combining a compact, managed edge switch.
Installing an iConverter NID plug-in module and a four-port switch module provides a securely managed Carrier Ethernet demarcation for one or more User-to-Network Interfaces (UNI). This configuration provides an MEF certified deployment supporting advanced Operation, Administration and Maintenance (OAM) features.
The iConverter 2-Module Chassis can be wall-mounted using the optional wall mounting kit or installed on a stable, flat surface. Utilizing the iConverter 19” rack-mount shelf, two chassis can be securely mounted side-by-side.
8230-0, 8230-1, 8231-0, 8231-1, 8232-1, 8235-0, 8235-1, 8236-0, 8236-1, 8238-1, 8239-0, IMC-712-AC-US
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
- 2-Module chassis feature an internal AC or DC power supply
- Houses all models of hot-swappable iConverter media converter and switch modules
- NEBS Level 3 Certification
- Ethernet backplane ports for connectivity to installed modules to support a wide variety of configurations
- Wall-mount or tabletop options for flexible installations
- Management is available with the addition of a management module to the chassis
- SNMP management via NetOutlook® provides real-time port and module status information, remote parameter configuration and trap notification
- Commercial (0 to +50° C), wide (-40 to +60° C) and extended (-40 to +75°C) temperature ranges
- TAA, BAA and NDAA compliant, and Made in the USA
- Lifetime Warranty and free 24/7 Technical Support
Step 1: Choose a Base Part Number (xxxx-xt)
| Model Number | Model Type | Power Description |
|---|---|---|
| 8230-0t |
2-Module Chassis with 8.5 watt AC Power Supply, No fan |

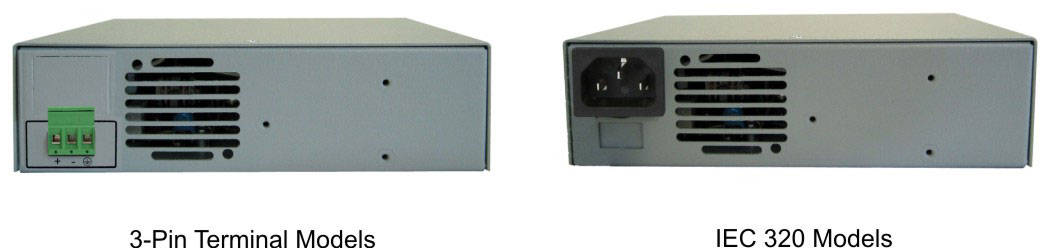

IEC 320 Socket, 100 to 240VAC, 50/60Hz, 0.5A @ 120VAC, US power cord included |
| 8230-1t |
2-Module Chassis with 8.5 watt AC Power Supply, No fan, with dying gasp |
IEC 320 Socket, 100 to 240VAC, 50/60Hz, 0.5A @ 120VAC, US power cord included |
| 8231-0t |
2-Module Chassis with 16.5 watt AC Power Supply, with temperature controlled fan |
IEC 320 Socket, 100 to 240VAC, 50/60Hz, 0.5A @ 120VAC, US power cord included |
| 8231-1t |
2-Module Chassis with 16.5 watt AC Power Supply, with temperature controlled fan, with dying gasp |
IEC 320 Socket, 100 to 240VAC, 50/60Hz, 0.5A @ 120VAC, US power cord included |
| 8232-1t |
2-Module Chassis with 16.5 watt High Airflow AC Power Supply, with fan, with dying gasp |
IEC 320 Socket, 100 to 240VAC, 50/60Hz, 0.5A @ 120VAC, US power cord included |
| 8235-0t |
2-Module Chassis with 6.6 watt 48 VDC Power Supply, No fan |
Direct DC 3-Pin Terminal, +/- 18 to 60VDC, 1.0A @ 48VDC |
| 8235-1t |
2-Module Chassis with 6.6 watt 48 VDC Power Supply, No fan, with dying gasp |
Direct DC 3-Pin Terminal, +/- 18 to 60VDC, 1.0A @ 48VDC |
| 8236-0t |
2-Module Chassis with 16.5 watt 48 VDC Power Supply, with temperature controlled fan |
Direct DC 3-Pin Terminal, +/- 18 to 60VDC, 2.0A @ 48VDC |
| 8236-1t |
2-Module Chassis with 16.5 watt 48 VDC Power Supply, with temperature controlled fan, with dying gasp |
Direct DC 3-Pin Terminal, +/- 18 to 60VDC, 2.0A @ 48VDC |
| 8238-1t |
2-Module Chassis with 16.5 watt High Airflow 48 VDC Power Supply, with fan, with dying gasp |
Direct DC 3-Pin Terminal, +/- 18 to 60VDC, 2.0A @ 48VDC |
|
High Airflow fans are always turned on. High Airflow models are only available with dying gasp. Use the Power Calculator to determine the iConverter chassis power supplies required for your module configuration. High Airflow power supplies are required for iConverter XG+, XGT+ and GM4 installations. Refer to Application notes. Contact Omnitron for other operating temperatures and RoHS (5/6) compliant models. |
||
Step 2: Choose an Operating Temperature Range (xxxx-xt)
| <leave blank> = Commercial temperature (0 to 50°C) |
| W = Wide temperature (-40 to 60°C) |
| Z = Wide temperature (-40 to 75°C) - DC models only |
Accessories
|
Model Number
|
Description
|
|---|---|
|
8249-0
|
Wall-Mount Hardware Kit
|
|
8260-0
|
19" Rack-Mount Shelf
|
|
8290-0
|
Blank Module Panel
|
| See Chassis and Mounting Options product page | |
