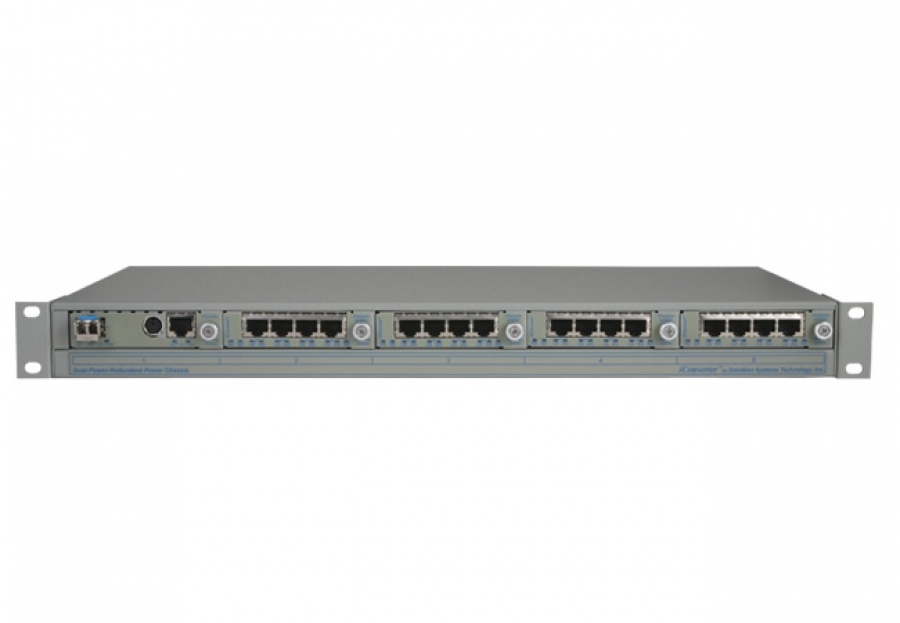

The iConverter 5-Module Chassis is designed for Enterprise Local Area Network (LAN) and Metropolitan Area Network (MAN) applications where fault tolerance and reliability are essential. The 1U (1.75 inch) high iConverter 5-Module Chassis has redundant power supplies and can be mounted in a 19-inch or 23-inch rack.
The 5-Module Chassis features two hot-swappable redundant power supplies. Universal AC, 24VDC and 48VDC power supplies are available. The redundant power supplies operate in load-sharing mode to reduce the burden on each power supply to extend the lifetime and fault tolerance.
Power is provided to up to five iConverter modules via the chassis backplane. When used with an iConverter management module, the management capabilities include the ability to monitor the voltage, current and temperature of each power supply. Any out of range violation can trigger an SNMP trap to allow quick corrective maintenance.
In addition to handling the power and management data for each iConverter module, the 5-Module Chassis backplane allows sharing of Ethernet data between the individual modules. iConverter modules that are installed in adjacent slots and equipped with Ethernet backplane ports have the ability to connect to each other via the chassis' Ethernet backplane and facilitate a variety of flexible network applications including unmanaged, out-of-band managed, in-band managed and multi-port configurations.
The high reliability of the redundant power system combined with its AC and DC power options and its ability to hold five converters in a 1U height make the 5-Module Chassis the ideal choice for Customer Premises (CPE), multi-tenant (MTU) or for Point of Presence (POP) applications where reliability and space are critical.
The iConverter 5-Module Chassis supports the entire family of iConverter fiber media converters. All iConverter modules are hot-swappable and support multiple mounting options. In addition to the 5-Module Chassis, they can be mounted in a 19-Module (2U, 3.5 inch high) space-saving rack-mountable chassis (19-inch or 23-inch) with triple redundant AC, 24VDC and 48VDC power supplies, in a 2-Module AC or 18-60VDC power chassis or in a 1-Module AC power chassis.
8220-0, 8220-1, 8220-2, 8220-9, 8221-1, 8221-2, 8221-9, 8225-1, 8225-2, 8225-9, 8226-1, 8226-2, 8226-9, 8227-1, 8227-2, 8227-9, 8092-1, 8092-2, 8092-3, 8096-1, 8096-2, IMC-713-2AC-US
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
- The iConverter 5-Module Chassis is 1U (1.75 inch) high and supports 19-inch or 23-inch rack mounts
- Redundant, hot-swappable AC, 24VDC and 48VDC power supplies for mission critical networks
- NEBS Level 3 Compliant
- Ethernet backplane allows modules to share data and support a wide variety of network applications
- Fiber Cable Management Tray available for high-density CWDM deployments
- All iConverter modules are hot-swappable when used with the 5-Module Chassis
- Management is available with the addition of a management module to the chassis
- SNMP management via NetOutlook® provides real-time port and module status information, remote parameter configuration and trap notification
- Commercial (0 to +50° C), wide (-40 to +60° C) and extended (-40 to +75°C) temperature ranges
- TAA, BAA and NDAA compliant, and Made in the USA
- Lifetime Warranty and free 24/7 Technical Support
Step 1: Choose a Base Part Number (xxxx-pt)
| Model Number | Model Type | Power Description |
|---|---|---|
| 8220-pt | 5-Module Chassis with 33 watt AC Power Supply |
IEC 320 Socket, 100 to 240VAC, 50/60Hz, 0.5A @ 120VAC, US power cord included |
| 8221-pt | 5-Module Chassis with 66 watt High Airflow AC Power Supply |
IEC 320 Socket, 100 to 240VAC, 50/60Hz, 1.5A @ 120VAC, US power cord included |
| 8225-pt | 5-Module Chassis with 33 watt 48 VDC Power Supply |
Direct DC 3-Pin Terminal, +/- 36 to 60VDC, 0.7A @ 48VDC |
| 8226-pt | 5-Module Chassis with 33 watt 24 VDC Power Supply |
Direct DC 3-Pin Terminal, +/- 18 to 36VDC, 1.4A @ 24VDC |
| 8227-pt | 5-Module Chassis with 66 watt High Airflow 48 VDC Power Supply |
Direct DC 3-Pin Terminal, +/- 36 to 60VDC 2.0A @ 48VDC |
|
High Airflow power supplies (66W) cannot be installed in the same chassis with other types of power supplies. Use the Power Calculator to determine the iConverter chassis power supplies required for your module configuration. High Airflow power supplies are required for iConverter XG+, XGT+ and GM4 installations. Refer to Application notes. The 5-Module chassis does not support dying gasp. Contact Omnitron for other operating temperatures and RoHS (5/6) compliant models. |
||
Step 2: Choose the number of Power Supplies (xxxx-pt)
| 1 = One power supply installed in the chassis | ||
| 2 = Two power supplies installed in the chassis | ||
| 9 = Spare power supply, chassis not included |
Step 3: Choose an Operating Temperature Range (xxxx-pt)
| <leave blank> = Commercial temperature (0 to 50°C) |
| W = Wide temperature (-40 to 60°C) |
| Z = Wide temperature (-40 to 75°C) - DC models only |
Accessories
|
| |
|---|---|
|
Model Number
|
Description
|
|
8090-0
|
Blank Module Panel
|
|
8092-1
|
19” Rack Mount Kit (included with chassis)
|
|
8092-2
|
23” Rack Mount Kit
|
|
8092-3
|
ETSI Rack Mounting Kit
|
|
8096-1
|
19” Cable Management Tray
|
|
8096-2
|
23” Cable Management Tray
|
