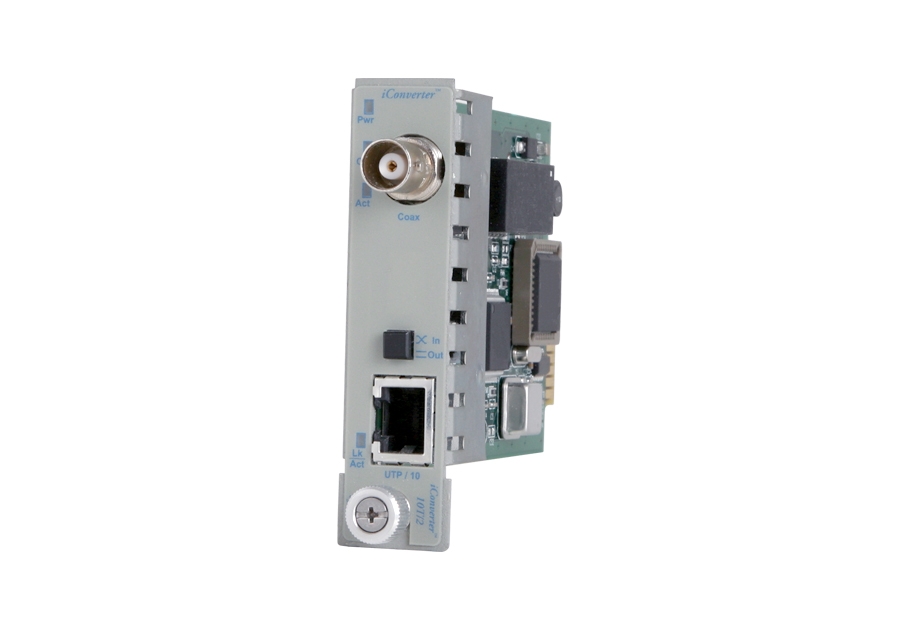

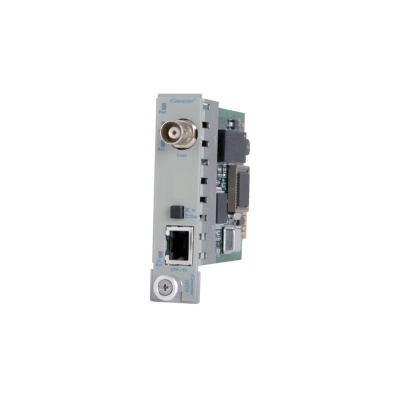

The iConverter 10T/2 managed media converters are members of the modular iConverter product family, and provide 10BASE-T copper to 10BASE-2 coax conversion.
The RJ-45 port supports distances up to 100 meter on twisted pair cabling. The iConverter 10T/2 detects and corrects wiring polarity reversals, and features a crossover switch that facilitates a straight-through cable connection to a workstation or a hub, eliminating the need for a crossover cable.
The coax port has a 50 ohm BNC connector that supports distances of up to 185m. Per IEEE 802.3 standard, up to 30 workstations can be attached to the coax segment. The iConverter 10T/2 features a convenient and cost-effective cable termination via a termination switch and a built-in line termination.
The iConverter 10T/2 can be used in managed or unmanaged applications. Management provides remote configuration, monitoring and trap notification. Management of the 10T/2 is accomplished by installing an iConverter Management Module (NMM2) or Network Interface Device (NID) in the same chassis.
The management software can override the physical DIP-switch settings such as coax termination or enable/disable backplane. The module supports SNMP trap notification for the monitoring and notification of different network events.
The iConverter 10T/2 module is hot-swappable and can be mounted in a 19-Module (2U high) or 5-Module (1U high) rack-mountable chassis (19-inch or 23-inch) with redundant AC, 24VDC or 48VDC power supplies. It can also be mounted in a 2-Module AC or 18 to 60VDC powered chassis, or in a 1-Module AC or DC powered chassis.

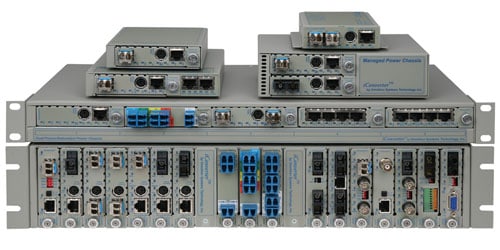

The iConverter Multi-Service Platform consists of Network Interface Devices, T1/E1 multiplexers, CWDM/DWDM multiplexers and managed media converters that combine to deliver Carrier Ethernet and TDM services over fiber or CWDM/DWDM wavelengths.
8340-0, CEM0100
|
||||||||||||||||||||||||||||||||||||||||||||||
- 10BASE-T copper to 10BASE-2 coax converter
- Seamlessly connects 10BASE-T hubs via coax and coax network segments to 10BASE-T hubs
- Supports 50 ohm coax to a maximum distance of 185m and 30 stations
- Features a UTP crossover switch and automatic polarity detection and correction
- Features switch-selectable coax line termination for convenience, space and cost saving
- LED displays for immediate visual status of each port
- Modules are hot-swappable in 19-Module, 5-Module, 2-Module or 1-Module chassis
- Management is available with the addition of a management module to the chassis
- SNMP management via NetOutlook® provides real-time port and module status information, remote parameter configuration and trap notification
- Commercial (0 to 50°C) and wide (-40 to 60°C) temperature ranges
- TAA, BAA and NDAA compliant, and Made in the USA
- Lifetime Warranty and free 24/7 Technical Support

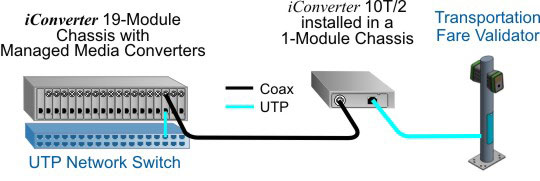

In the application below, a iConverter 10T/2 media converter is used to connect a Transportation Fare Validator that has an RJ-45 UTP port to the existing coax infrastructure. The iConverter 10T/2 converts the 10BASE-T RJ-45 connection from the Fare Validator to 10BASE-2 coax.
At the head end, the iConverter 10T/2 installed in a highdensity 19-Module chassis converts the coax back to UTP and provides connectivity to the Network Switch.

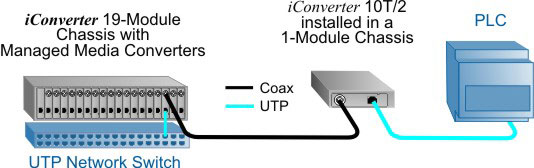

In this second application, iConverter 10T/2 media converters can be used to connect PLC devices in industrial and manufacturing environments. The iConverter 10T/2 are available in commercial (0 to 50°C) and wide (-40 to 60°C) temperature ranges to accommodate various installation environments.
Step 1: Choose a Base Part Number (xxxx-xt)
| Model Number | Description |
|---|---|
| 8340-0t | 10BASE-T RJ-45 (100 meters) to 10BASE-2 Coax (185 meters) Media Converter |
| Contact Omnitron for other configurations, extended temperature range and RoHS (5/6) compliant models. | |
Step 2: Choose an Operating Temperature Range (xxxx-xt)
| <leave blank> = Commercial temperature (0 to 50°C) |
| W = Wide temperature (-40 to 60°C) |
