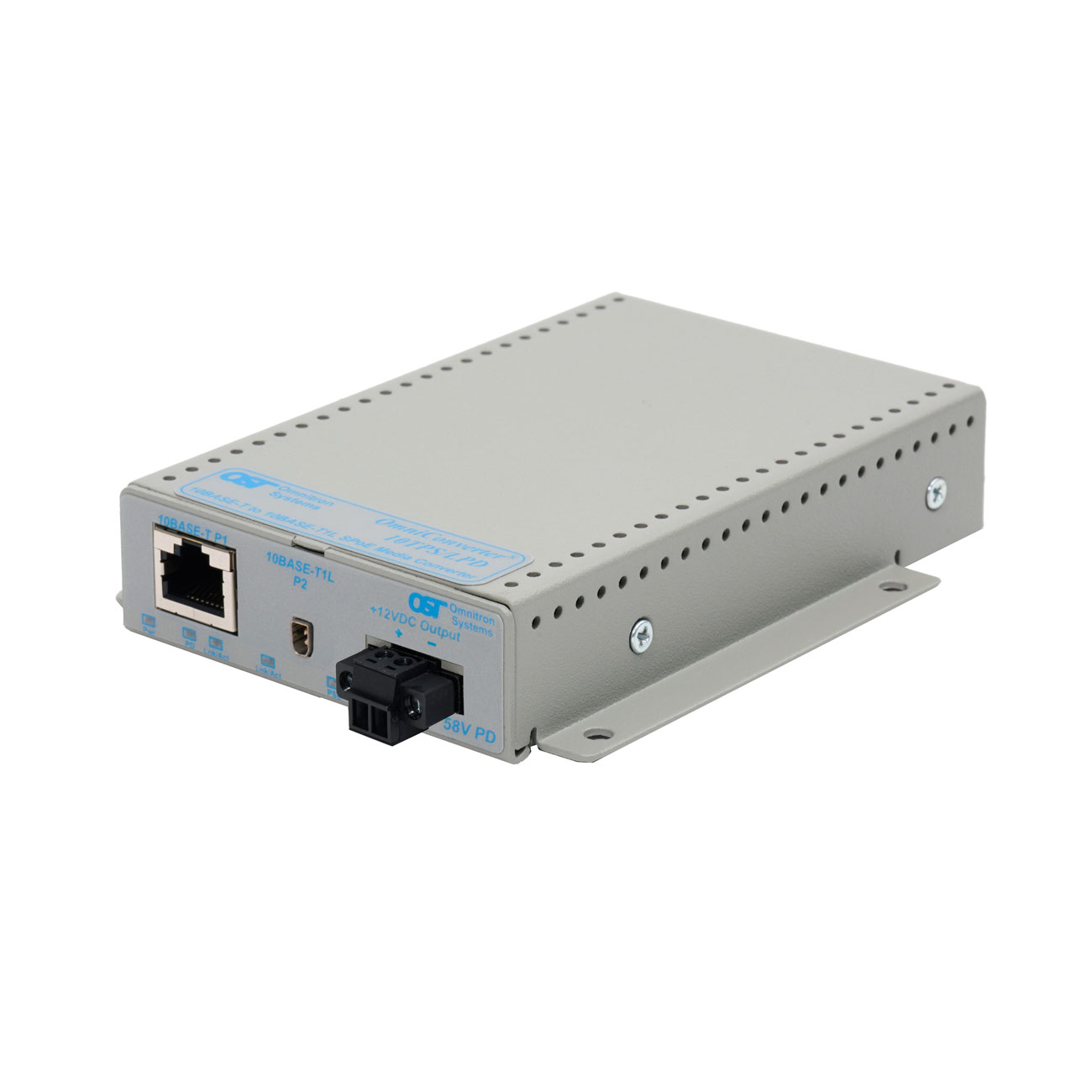

OmniConverter SPE LPDS IEC2 12V Splitter
Lifetime Warranty

Single Pair Ethernet (SPE) PoE Media Converter and 12VDC Splitter

OmniConverter® 10T/LPDS58

Part Number: 2055-21-10Z

Add to Quote
icons
  • Description
  • Specifications
  • Documents

OmniConverter 10T/LPDS58 - 1 x

10BASE-T RJ-45  and 1 x 10BASE-T1L SPoE/PD30; IEC 63171-2 Connector; No external power input (Powered through PD port), 12VDC Splitter output,  with integrated mounting brackets; Extended Temp (-40 to 75 deg C)

Specifications

Description

10T/LPS

10BASE-T to 10BASE-T1L

SPoE

10TPD/LPS

10BASE-T PD to 10BASE-T1L

SPoE

10TPS/LPD

10BASE-T PoE+ to 10BASE-T1L

PD

10T/LPDS

10BASE-T to 10BASE-T1L

PD with Splitter

Base Model Number 2020 2030 2045 2050/2055
Standard Compliances

IEEE 802.3,

IEEE 802.3cg

IEEE 802.3,

IEEE 802.3cg,

IEEE 802.3af,

IEEE 802.3at

IEEE 802.3,

IEEE 802.3cg,

IEEE 802.3af,

IEEE 802.3at

IEEE 802.3,

IEEE 802.3cg
Regulatory Compliances (Pending)

Safety: UL 62368-1, UL 60950-1,

             IEC 62368-1, IEC 60950-1,

             CUL CSA C22.2 No. 60950-1,

             EN 60950-1:2006

             CE Mark,

             UKCA

EMI:      FCC 47CFR, Part 15 Class A

             AS/NZS 3548, AS/NZS 4417.1 and AS/NZS 4417.2

             ICES-003 Issue 3

             EN 55032/CISPR 22 and EN55035

             EN61000-3-2

             VCCI V3/2001.04 (CISPR 22A:1997, Class A)

EMC:    IEC/EN61000-4-2, IEC/EN61000-4-3

             IEC/EN61000-4-4, IEC/EN61000-4-5

             IEC/EN61000-4-6, IEC/EN61000-4-8

             IEC/EN61000-4-11

ACT:     TAA, BAA, NDAA
Environmental REACH, RoHS and WEEE
Frame Size Up to 1518 bytes
Port Types

10BASE-T: RJ-45

10BASE-T1L:

3-Pin Terminal or

IEC 63171 SPE/SPoE Connector

Auto Detects Classes 10-15

30VDC/58VDC PD

10BASE-T: RJ-45 PoE+/PD

10BASE-T1L:

3-Pin Terminal or

IEC 63171 SPE/SPoE Connector

Auto Detects Classes 10-15

30VDC/58VDC PD

10BASE-T: RJ-45 PoE+/PSE

10BASE-T1L:

3-Pin Terminal or

IEC 63171 SPE/PD Connector

Class 15 PD

10BASE-T: RJ-45

10BASE-T1L:

3-Pin Terminal or

IEC 63171 SPE/PD Connector

Splitter Output: 12 or 24VDC

Model 2050: Class 12 PD

Model 2055: Class 15 PD
Cable Types

10BASE-T: Ethernet, EIA/TIA 568A/B, Cat 3 or better

10BASE-T1L: Single-Pair Ethernet (SPE) cable, IEC 61156-13 (fixed) or IEC 61156-14 (flexible) 18AWG cable or better

AC Power Requirements

(with AC/DC Adapters)

100 - 240VAC

50-60Hz,

0.91A @ 120VAC

2.1mm Barrel

 N/A N/A N/A

DC Power Requirements

(with DC Terminals)

+50 to +58VDC;

1.69A @ 56VDC

2 Pin Terminal

 N/A N/A N/A

Dimensions

(W x D x H)

without mounting brackets: 3.1” x 4.8” x 1.0” (78.7 mm x 121.9 mm x 25.4 mm)

with mounting brackets: 3.8” x 4.8” x 1.0” (96.5 mm x 121.9 mm x 25.4 mm)
Weight

Module Only: 1.0 lbs. (453.6 grams)

Module w/ Adapter: 1.9 lbs. (852.6 grams)
Operating Temperature

Commercial: 0 to 50°C

Wide: -40 to 60°C

Extended: -40 to 75°C

Storage: -40 to 80°C
Humidity 5 to 95% (non-condensing)
Altitude -100m to 4,000m (operational)
MTBF (hours)

Module Only:1,233,000

AC/DC Adapter:100,000

Module Only: 995,000

AC/DC Adapter: N/A

Module Only: 1,557,000

AC/DC Adapter: N/A

Module Only: 1,935,000

AC/DC Adapter: 100,000
Warranty Lifetime warranty with 24/7/365 free Technical Support
