Ultra Compact 10/100/1000BASE-T to 1000BASE-X Gigabit Ethernet Media Converter w/ Link Segment and Link Propagate Mode

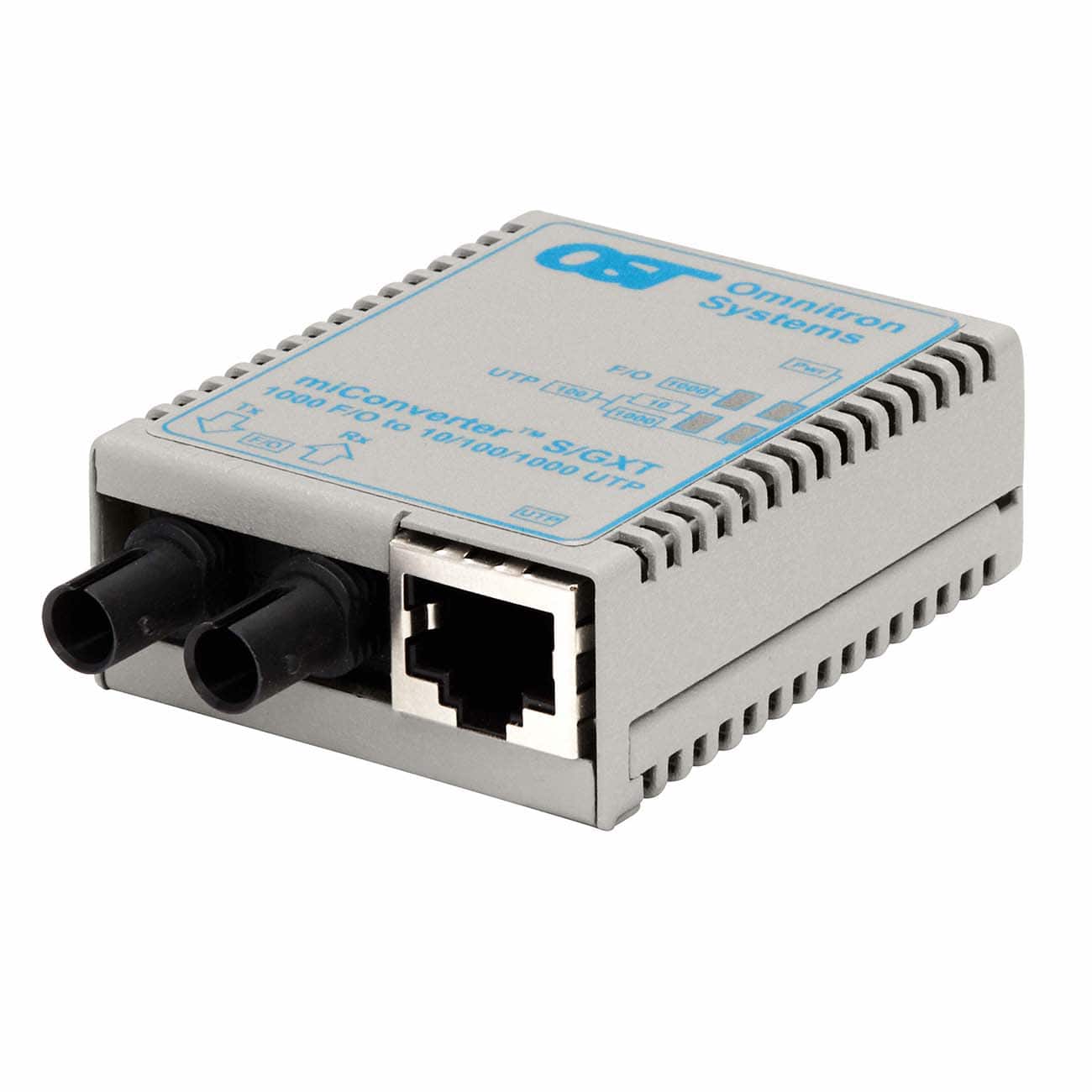

miConverter® S/GXT+

Part Number: 1661-1-1

miConverter® S/GXT+: 10/100/1Gbps RJ-45 to 1 Gbps, ST, Single-Mode Dual Fiber, 1310nm, 12km, US 100-240VAC, Commercial Temperature 0 to 50 deg C

Description	miConverter S/GXT and S/GXT+ 10/100/1000BASE-T Copper to 1000BASE-X Fiber Media Converter
Standard Compliances	IEEE 802.3
Regulatory Compliances	Safety: EMI: ACT:	UL, cUL, CE, UKCA FCC 15 Class B TAA, BAA, NDAA
Environmental	RoHS, WEEE, REACH
Frame Size	Up to 9K bytes
Port Types	Copper: Fiber:	10/100/1000BASE-T (RJ-45) 1000BASE-SX/LX (ST, SC, SFP) 1000BASE-BX (SC Single-Fiber)
Cable Types	Copper: Fiber:	EIA/TIA 568A/B, Cat 5 UTP and higher Multimode: 50/125µm, 62.5/125µm Single-mode: 9/125µm
AC Power Requirements	AC/DC Adapter:	110 - 240VAC/50 - 60Hz 0.02A @ 120VAC (max) USB micro-B
DC Power Requirements	DC Input:	5.0VDC, 0.5A @ 5VDC USB 1.x/2.x 5.0VDC, 0.9A @ 5VDC USB 3.x 5.0VDC, 1.0A @ 5VDC Power Adapter USB micro-B
Dimensions W x D x H	1.75" x 2.25" x 0.84" (44.5 mm x 57.2 mm x 21.3 mm)
Weight	Module Only: With USB cable: With AC/DC adapter and USB cable:	2.5 oz. (70.9 grams) 3.8 oz. (107.7 grams) 12 oz. (340.2 grams)
Temperature	Commercial: Wide: Extended: Storage:	0 to 50°C -40 to 60°C -40 to 75°C (S/GXT+ and S/GXT w/Rev B HW) -50 to 80°C
Humidity	5% to 95% (non-condensing)
Altitude	-100m to 4,000m (operational)
MTBF (hrs)	S/GXT Module Only: AC/DC Adapter: S/GXT (Rev B HW) Module Only: AC/DC Adapter:	1,300,000 100,000 1,460,000 100,000
MTBF (hrs)	S/GXT+ Module Only: US AC Adapter:	1,430,000 100,000
Warranty	Lifetime warranty with 24/7/365 free Technical Support

DC Power Requirements
USB 1.x/2.x (5.0V at 0.5A max)
miConverter	Temperature Range	SFP Models Supported
S/GXT	Commercial, Wide	7206-x, 7207-1, 7207-2
S/GXT+	Commercial, Wide	7206-x, 7207-1, 7207-2
USB 3.0 (5.0V at 0.9A max), or USB Power Adapter (5.0V at 1.0A max)
S/GXT Rev B	Commercial, Wide, Extended	Any MSA compliant SFP
S/GXT+	Commercial, Wide, Extended	Any MSA compliant SFP
