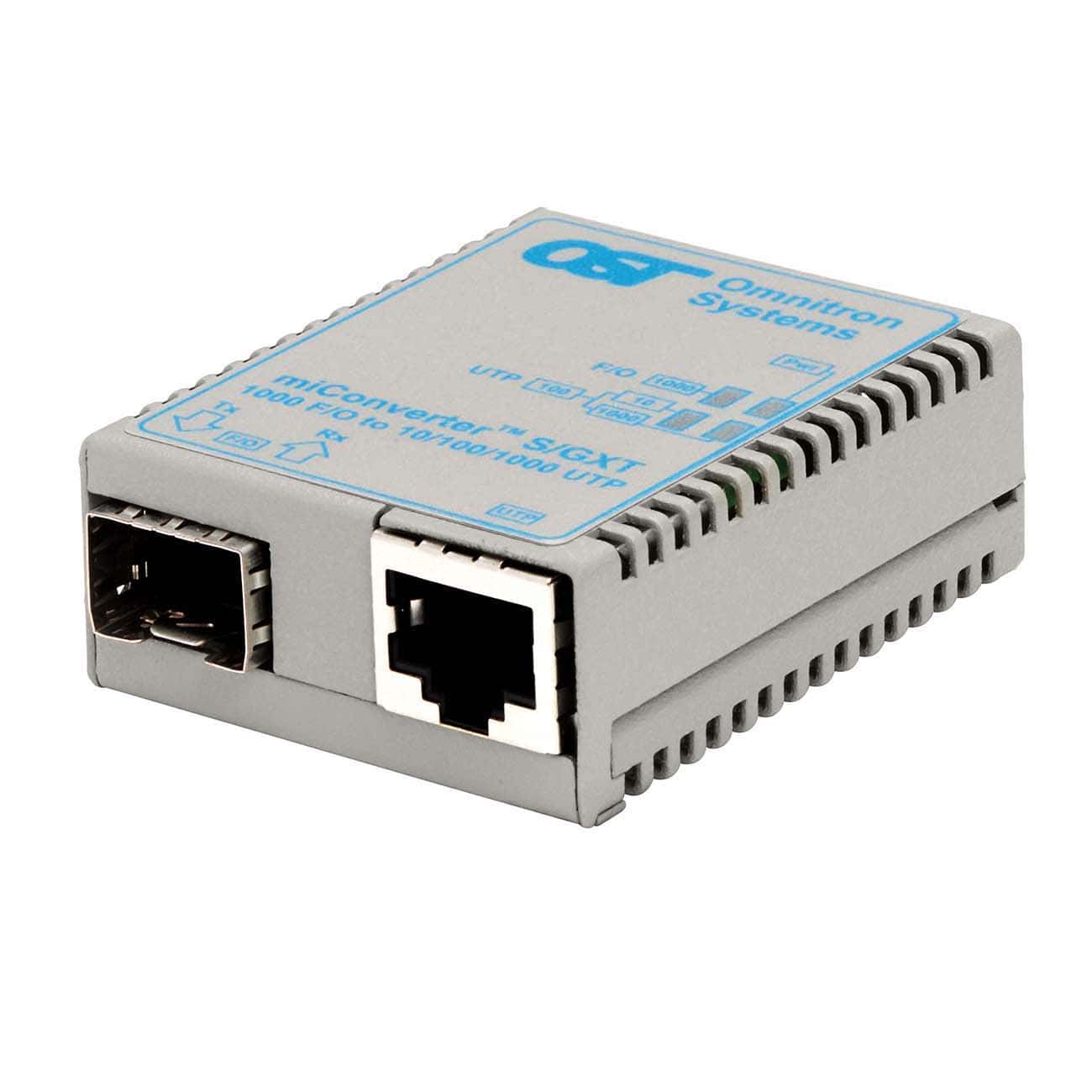

miconverter S GXT SFP
Lifetime Warranty

Ultra Compact 10/100/1000BASE-T to 1000BASE-X Gigabit Ethernet Media Converter

miConverter® S/GXT

Part Number: 1639-0-1



Add to Quote
icons
  • Description
  • Specifications
  • Documents

miConverter® S/GXT: 10/100/1Gbps RJ-45 to 1 Gbps, SFP, Fiber Type depends on SFP, Wavelength depends on SFP, Distance depends on SFP, US 100-240VAC, Commercial Temperature 0 to 50 deg C

Specifications

Description
miConverter S/GXT and S/GXT+
10/100/1000BASE-T Copper to 1000BASE-X Fiber Media Converter
Standard Compliances
 IEEE 802.3
Regulatory Compliances

Safety:

EMI:

ACT:

UL, cUL, CE, UKCA

FCC 15 Class B

TAA, BAA, NDAA
Environmental RoHS, WEEE, REACH
Frame Size
 Up to 9K bytes
Port Types
Copper:

Fiber:
10/100/1000BASE-T (RJ-45)

1000BASE-SX/LX (ST, SC, SFP)
1000BASE-BX (SC Single-Fiber)
Cable Types
Copper:

Fiber:
EIA/TIA 568A/B, Cat 5 UTP and higher

Multimode: 50/125µm, 62.5/125µm
Single-mode: 9/125µm
AC Power Requirements
AC/DC Adapter:


110 - 240VAC/50 - 60Hz
0.02A @ 120VAC (max)
USB micro-B
DC Power Requirements
DC Input:
5.0VDC, 0.5A @ 5VDC USB 1.x/2.x
5.0VDC, 0.9A @ 5VDC USB 3.x
5.0VDC, 1.0A @ 5VDC Power Adapter
USB micro-B
Dimensions
W x D x H
 1.75" x 2.25" x 0.84" (44.5 mm x 57.2 mm x 21.3 mm)
Weight
 Module Only:
With USB cable:
With AC/DC adapter and USB cable:		 2.5 oz. (70.9 grams)
3.8 oz. (107.7 grams)
12 oz. (340.2 grams)
Temperature
Commercial:
Wide:
Extended:
Storage:
    0 to 50°C
 -40 to 60°C
 -40 to 75°C (S/GXT+ and S/GXT w/Rev B HW)
 -50 to 80°C
Humidity
 5% to 95% (non-condensing)
Altitude
 -100m to 4,000m (operational)
MTBF (hrs)
S/GXT
Module Only:
AC/DC Adapter:
S/GXT (Rev B HW)
Module Only:
AC/DC Adapter:

1,300,000
100,000

1,460,000
100,000
S/GXT+
Module Only:
US AC Adapter:

1,430,000
100,000
Warranty
 Lifetime warranty with 24/7/365 free Technical Support



DC Power Requirements
USB 1.x/2.x (5.0V at 0.5A max)
miConverterTemperature RangeSFP Models Supported
S/GXT Commercial, Wide 7206-x, 7207-1, 7207-2
S/GXT+ Commercial, Wide 7206-x, 7207-1, 7207-2
USB 3.0 (5.0V at 0.9A max), or USB Power Adapter (5.0V at 1.0A max)
S/GXT Rev B Commercial, Wide, Extended Any MSA compliant SFP
S/GXT+ Commercial, Wide, Extended Any MSA compliant SFP
