Part Number: 1600-0-8

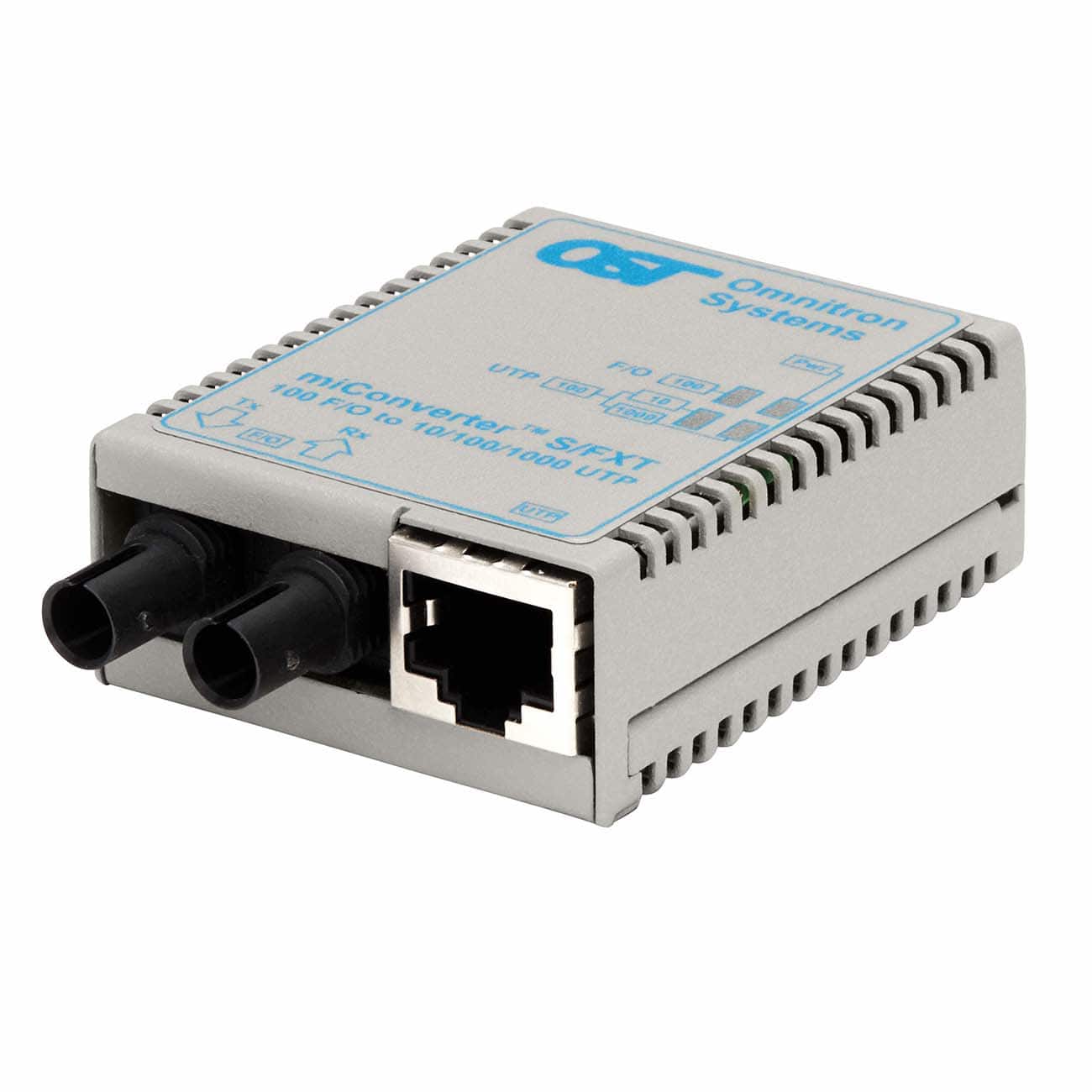

miConverter® S/FXT: 10/100/1Gbps RJ-45 to 100 Mbps, ST, Multimode Dual Fiber, 1310nm, 5km, JPN 100-240VAC, Commercial Temperature 0 to 50 deg C

Description	miConverter S/FXT 10/100BASE-T Copper to 100BASE-FX Fiber Media Converter
Standard Compliances	IEEE 802.3
Regulatory Compliances	Safety: EMI: ACT	UL, cUL, CE, UKCA FCC 15 Class B TAA, BAA, NDAA
Environmental	RoHS, WEEE, REACH
Frame Size	Up to 10,240 bytes
Port Types	Copper: Fiber:	10/100/1000BASE-T (RJ-45) 100BASE-FX/LX (ST, SC, SFP) 100BASE-BX (SC Single-Fiber)
Cable Types	Copper: Fiber:	EIA/TIA 568A/B, Cat 5 UTP and higher Multimode: 50/125µm, 62.5/125µm Single-mode: 9/125µm
AC Power Requirements	AC/DC Adapter:	110 - 120VAC/50 - 60Hz 0.02A @ 120VAC (max) USB micro-B
DC Power Requirements	DC Input (USB):	5.0VDC, 0.5A @ 5VDC USB micro-B
Dimensions W x D x H	1.75" x 2.25" x 0.84" (44.5 mm x 57.2 mm x 21.3 mm)
Weight	Module Only: With USB cable: With AC/DC adapter and USB cable:	2.5 oz. (70.9 grams) 3.8 oz. (107.7 grams) 12 oz. (340.2 grams)
Temperature	Commercial: Wide: Storage:	0 to 50°C -40 to 60°C -50 to 80°C
Humidity	5% to 95% (non-condensing)
Altitude	-100m to 4,000m (operational)
MTBF (hrs)	Module Only: US AC/DC Adapter:: Universal AC/DC Adapter:	1,300,000 50,000 200,000
Warranty	Lifetime warranty with 24/7/365 free Technical Support
