miconverter S FXT SFP
Lifetime Warranty

Ultra Compact 10/100/1000BASE-T to 100BASE-X Fast Ethernet Media Converter

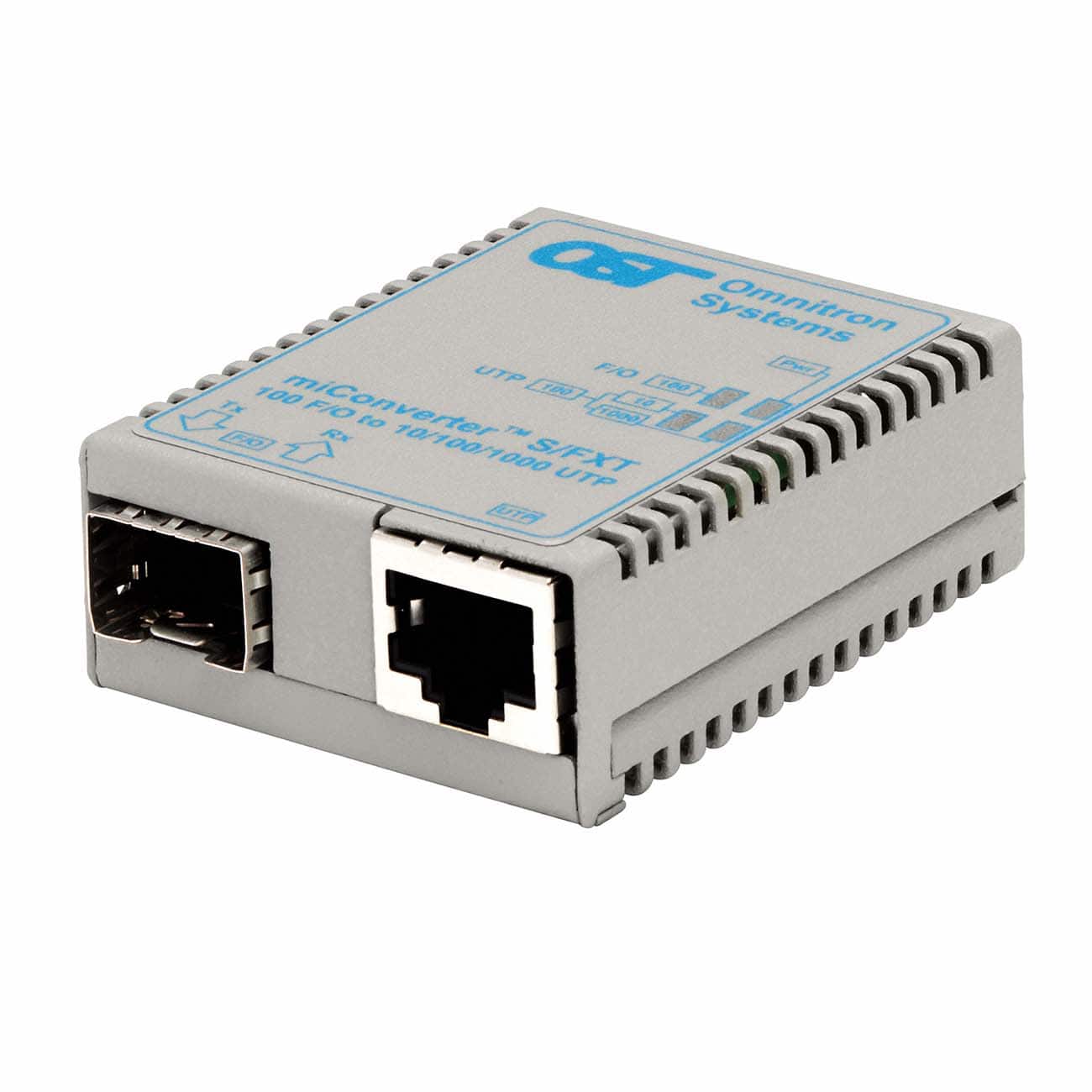

miConverter® S/FXT

Part Number: 1619-0-1W



Add to Quote
icons
  • Description
  • Specifications
  • Documents

miConverter® S/FXT: 10/100/1Gbps RJ-45 to 100 Mbps, SC, Fiber Type depends on SFP, Wavelength depends on SFP, Distance depends on SFP, US 100-240VAC, Wide Temperature -40 to 60 deg C

Specifications

Description
 miConverter S/FXT
 10/100BASE-T Copper to 100BASE-FX Fiber Media Converter
Standard Compliances
 IEEE 802.3
Regulatory Compliances

Safety:

EMI:

ACT

UL, cUL, CE, UKCA

FCC 15 Class B

TAA, BAA, NDAA
Environmental RoHS, WEEE, REACH
Frame Size
 Up to 10,240 bytes
Port Types

Copper:

Fiber:

10/100/1000BASE-T (RJ-45)

100BASE-FX/LX (ST, SC, SFP)

100BASE-BX (SC Single-Fiber)
Cable Types
Copper:

Fiber:
EIA/TIA 568A/B, Cat 5 UTP and higher

Multimode: 50/125µm, 62.5/125µm
Single-mode: 9/125µm
AC Power Requirements
AC/DC Adapter:


110 - 120VAC/50 - 60Hz
0.02A @ 120VAC (max)
USB micro-B
DC Power Requirements
DC Input (USB):
 5.0VDC, 0.5A @ 5VDC
USB micro-B
Dimensions
W x D x H
 1.75" x 2.25" x 0.84" (44.5 mm x 57.2 mm x 21.3 mm)
Weight
 Module Only:
With USB cable:
With AC/DC adapter and USB cable:		 2.5 oz. (70.9 grams)
3.8 oz. (107.7 grams)
12 oz. (340.2 grams)
Temperature
Commercial:
Wide:
Storage:
    0 to 50°C
 -40 to 60°C
 -50 to 80°C
Humidity
 5% to 95% (non-condensing)
Altitude
 -100m to 4,000m (operational)
MTBF (hrs)
Module Only:
US AC/DC Adapter::
Universal AC/DC Adapter:
 1,300,000
50,000
200,000
Warranty
 Lifetime warranty with 24/7/365 free Technical Support

miConverter S-Series FXT (Data Sheet)

miConverter S-Series FXT (User Manual)
