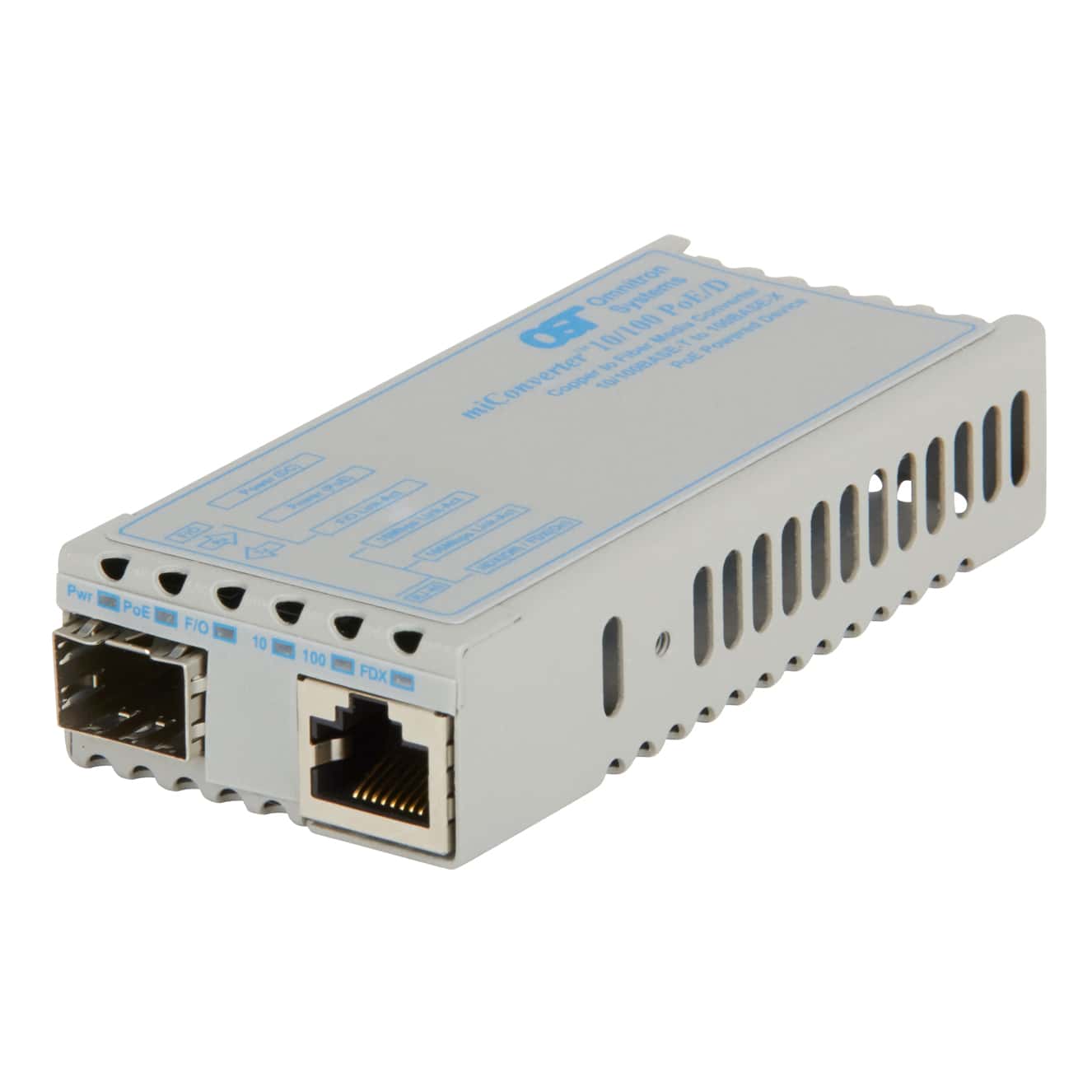

miconverter 10 100 POED SFP TT
Lifetime Warranty

10/100BASE-TX to 100BASE-X Ethernet Media Converter - PoE Powered

miConverter® 10/100 PoE/D

Part Number: 1119D-0-05Z

Add to Quote
icons
  • Description
  • Specifications
  • Documents

miConverter® 10/100 PoE/D: 10/100 Mbps RJ-45 to 100 Mbps, SFP Port, Fiber Type depends on SFP, Wavelength depends on SFP, Distance depends on SFP, AUS 100-240VAC, Extended Temperature -40 to 75 deg C

Specifications

Description
 miConverter 10/100 PoE/D
 10/100BASE-T to 100BASE-X Fiber Converter Powered by PoE
Standard Compliances IEEE 802.3, 802.3af
Regulatory Compliances

Safety: UL, cUL, CE, UKCA

EMI: FCC Class A

ACT: TAA, BAA, NDAA
Environmental RoHS, REACH, WEEE
Frame Size Up to 2,048 bytes
Port Types
Copper:
Fiber:
10/100BASE-T (RJ-45)
 100BASE-X (ST, SC, LC, SFP)
Cable Types
Copper:

Fiber:
EIA/TIA 568A/B, Cat 5 UTP and higher

Multimode: 50/125µm, 62.5/125µm
Single-mode: 9/125µm
AC Power Requirements
AC/DC Adapter:

100 - 240VAC/50 - 60Hz
0.03 @ 120VAC (max)
DC Power Requirements
DC Input:
(AC/DC Adapter)


DC Input:
(Terminal Connector)


DC Input:
(PoE)
8.0 to 60.0VDC
0.28 @ 9VDC
2.5mm Barrel Connector

8.0 to 60.0VDC
0.28 @ 9VDC
2-Pin Terminal (non-isolated)

44 - 57VDC, 0.05A @ 48VDC (typical)
RJ-45 (Alternative A & B)
Dimensions
(W x D x H)
Module:


Module:
w/Integrated Brackets
1.71” x 4.10” x 0.84”
(43.4 mm x 104.1 mm x 21.3 mm)

2.41” x 4.10” x 0.84”
(61.2 mm x 104.1 mm x 21.3 mm)
Weight
Module Only:
with AC/DC Adapter:
 4 oz. (113.4 grams)
12 oz. (340.2 grams)
Temperature
Commercial:
Wide:
Extended:
Industrial:
Storage:
   0 to 50°C
-40 to 60°C, -20°C AC cold start
-40 to 75°C, -20°C AC cold start
-40 to 85°C
-50 to 85°C
Humidity
 5% to 95% (non-condensing)
Altitude
 -100m to 4,000m (operational)
MTBF (hrs)
Module Only:
AC/DC Adapter:
1,160,000
206,000
Warranty
 Lifetime warranty with 24/7/365 free Technical Support

miConverter 10/100 PoE/D (Data Sheet)

miConverter 10/100 PoE/D (User Manual)
