Part Number: 1102-6-0W

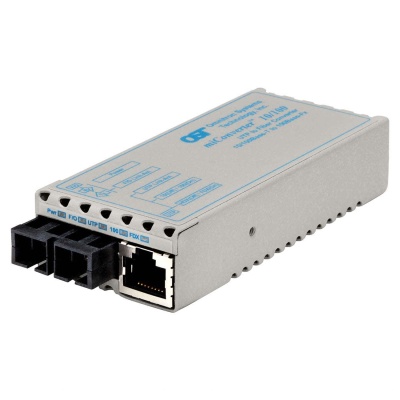

miConverter® 10/100: 10/100 Mbps RJ-45 to 100 Mbps, SC, Multimode Dual Fiber, 850nm, 2km, No AC/DC Power Adapter, Wide Temperature -40 to 60 deg C

Description	miConverter 10/100 and 10/100 Plus 10/100BASE-T Copper to 100BASE-FX Fiber Media Converter
Standard Compliances	IEEE 802.3
Regulatory Compliances	Safety: UL, cUL, CE, UKCA EMI: FCC Class A ACT: TAA, BAA, NDAA
Environmental	RoHS, REACH, WEEE
Frame Size	Up to 1,536 bytes
Port Types	Copper: Fiber:	10/100BASE-T (RJ-45) 100BASE-X (ST, SC) 100BASE-BX (SC Single-Fiber)
Cable Types	Copper: Fiber:	EIA/TIA 568A/B, Cat 5 UTP and higher Multimode: 50/125µm, 62.5/125µm Single-mode: 9/125µm
AC Power Requirements	AC/DC Adapter:	100 - 240VAC/50 - 60Hz 0.03A @ 120VAC (max) 2.5mm Barrel Connector
DC Power Requirements	DC Input: (AC/DC Adapter)	5.0 to 12.0VDC 0.5A @ 5VDC, 0.3A @ 9VDC 2.5mm Barrel Connector
Dimensions W x D x H	1.71" x 4.10" x 0.84" (43.4 mm x 104.1 mm x 21.3 mm)
Weight	Module Only: With AC/DC Adapter:	4 oz. (113.4 grams) 12 oz. (340.2 grams)
Temperature	Commercial: Wide: Storage:	0 to 50°C -40 to 60°C -40 to 80°C
Humidity	5% to 95% (non-condensing)
Altitude	-100m to 4,000m
MTBF (hrs)	Module Only: AC/DC Adapter: Universal AC/DC Adapter:	1,340,000 250,000 100,000
Warranty	Lifetime warranty with 24/7/365 free Technical Support
