Iconverter XGT+XFP
Lifetime Warranty

10GBASE-T Ethernet Copper to Fiber Media Converter

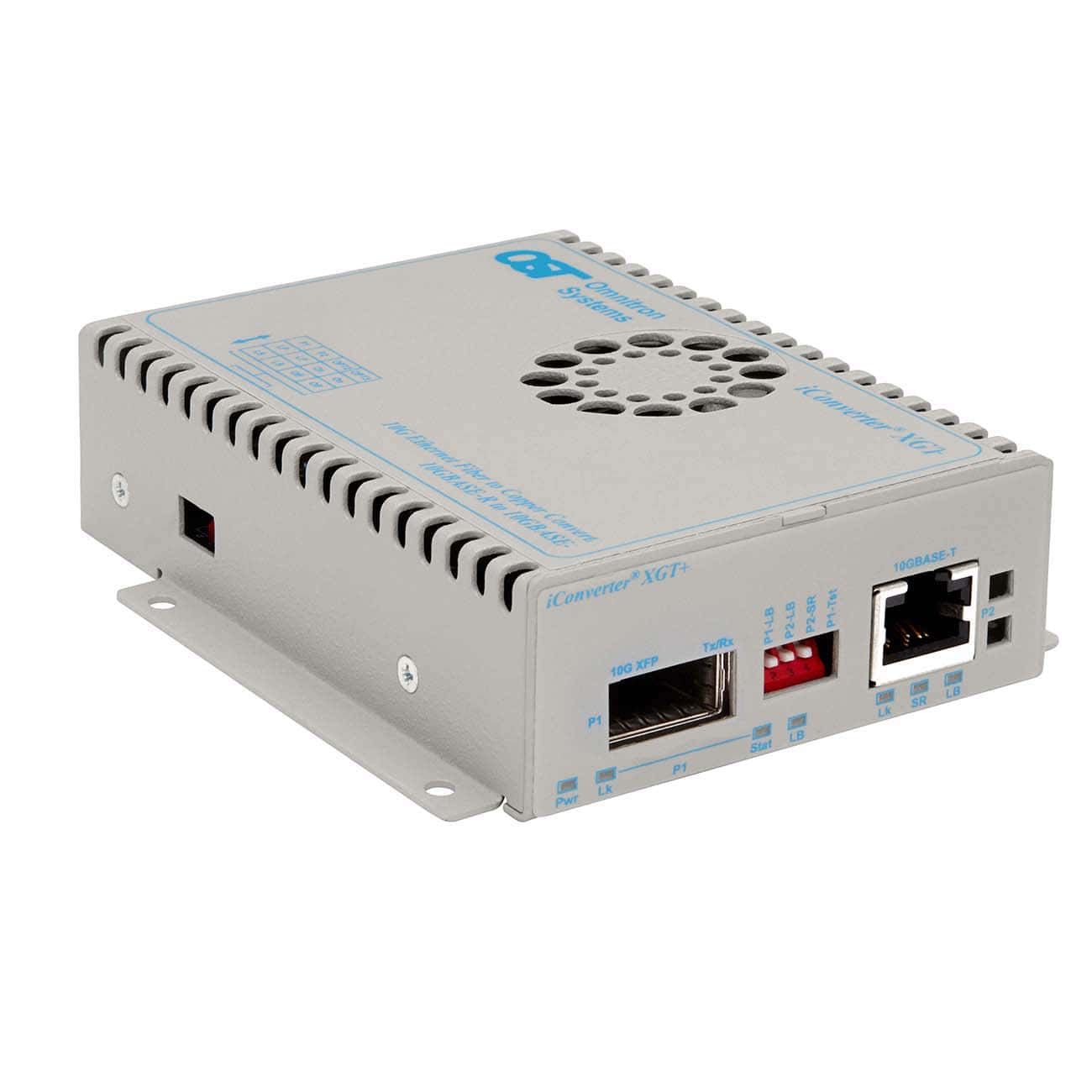

iConverter® XGT+

Part Number: 8589N-1-F



Add to Quote
icons
  • Description
  • Specifications
  • Documents

iConverter® XGT+: 10 Gbps RJ-45 to 10 Gbps, XFP, Fiber Type depends on XFP, Wavelength depends on XFP, Distance depends on XFP, DC 2-Pin Terminal, Commercial Temperature 0 to 50 deg C

Specifications

Description
 iConverter XGT+
 10GBASE-T Ethernet Media Converter
Standard Compliances
IEEE 802.3, 802.3an, 802.3az
Regulatory Compliances

Safety:

EMI:

ACT:

UL, cUL, CE, NEBS 3 Compliant, UKCA

FCC Class A

TAA, BAA NDAA
Environmental RoHS, WEEE, REACH
Frame Size
Unlimited
Port Type
Copper:
Fiber:
10GBASE-T (RJ-45)
10GBASE-X Dual and single-fiber SFP+, XFP
Cable Types
Copper:

Fiber:
EIA/TIA 568-B.2-10, Cat 6A UTP and higher

Multimode: 50/125µm, 62.5/125µm
Single-mode: 9/125µm
AC Power Requirements
AC Adapter:

100 - 240VAC/50 - 60Hz
0.20A @ 120VAC (max)
DC Power Requirements
DC Input:
(Backplane)

DC Input:
(Terminal)

DC Input:
(AC Adapter)
3.3VDC, 2.8A @ 3.3VDC


10 - 60VDC, 1.3A @ 12VDC max
2-Pin Terminal (non-isolated)

10 - 60VDC, 1.3A @ 12VDC max
2.5mm Barrel Connector
Dimensions
(W x D x H)
Plugin:
Standalone:
0.85” x 4.5” x 2.8” (21.6 mm x 114.3 mm x 71.1 mm)
3.8” x 4.8” x 1.8” (96.5 mm x 121.9 mm x 45.7 mm)
Weight
Plug-in:

Standalone
w/o AC Adapter:
w AC Adapter:
8 oz. (226.8 grams)


1.0 lb. (453.6 grams)
1.5 lbs. (680.4 grams)
Temperature
Commercial:
Wide:
Storage:
    0 to 50°C
 -40 to 60°C
 -40 to 80°C
Humidity
 5% to 95% (non-condensing)
Altitude
 -100m to 4,000m
MTBF (hrs)
Plugin:

Standalone
w/o AC Adapter:
w AC Adapter:
w/ Uni AC Adapter:
400,000


230,000
70,000
70,000
Warranty
Lifetime warranty with 24/7/365 free Technical Support

iConverter XGT+ (Data Sheet)

iConverter XGT+ Plug-in (Quick Start)

iConverter XGT+ Standalone (User Manual)

iConverter XG, XG+ and XGT+ Chassis Installation Guidelines for Airflow and Cooling

iConverter XG, XG+ and XGT+ Product Selection Guidelines
