Managed xFF Fiber-to-Fiber Converter Omnitron Systems

| |

Description
Specifications
Documents

iConverter® xFF: SFP to SFP, SFP, Fiber Type depends on SFP, Wavelength depends on SFP, Distance depends on SFP, US 100-240VAC, Commercial Temperature 0 to 50 deg C

Specifications

Specifications

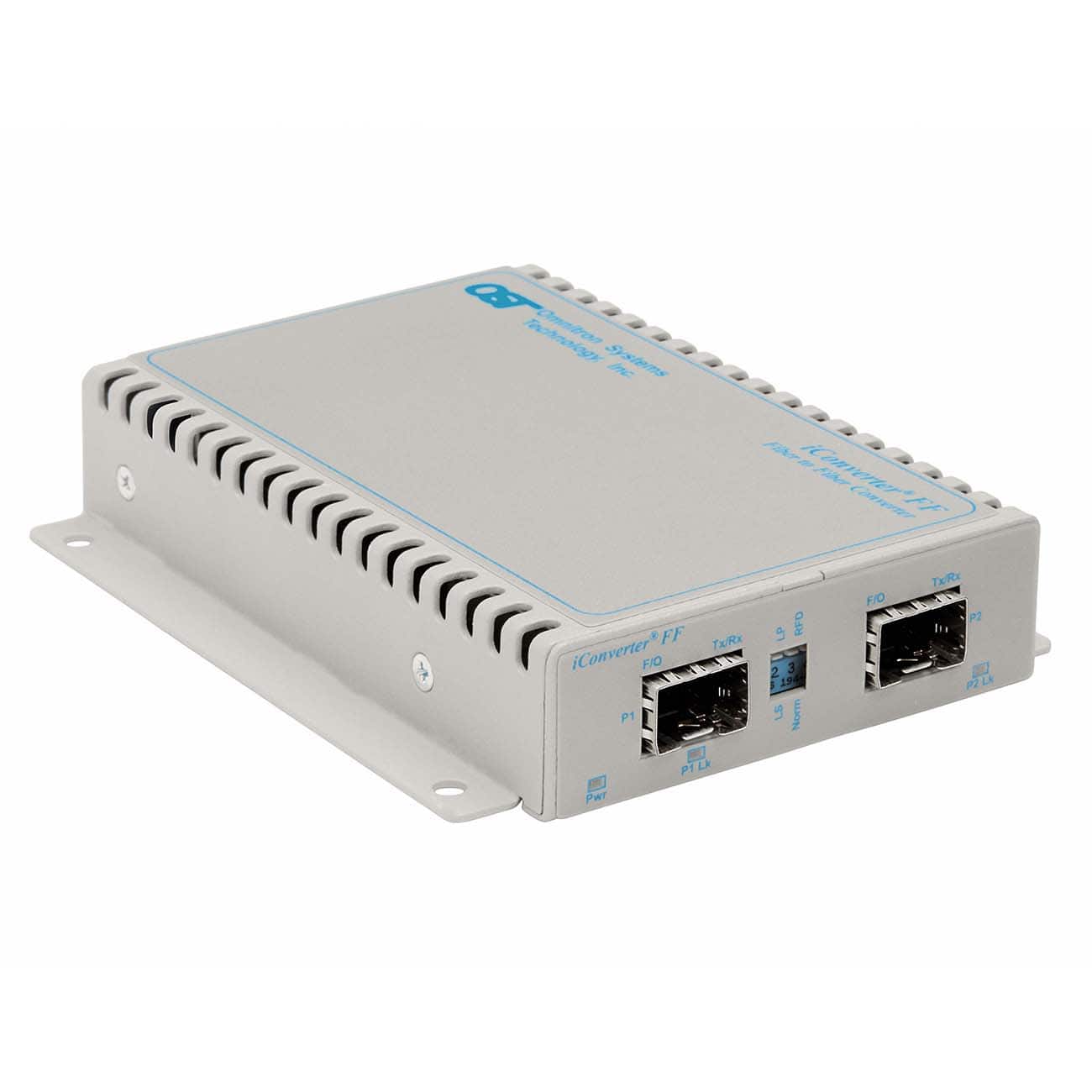

Description	iConverter xFF SFP to SFP Protocol-Transparent Fiber Converter
Standard Compliances	Protocol Transparent up to 8.50Gbps: Ethernet (100BASE-X, 1000BASE-X) SONET (OC-3, OC-12, OC-48), SDH (STM-1, STM-4, STM-16) Fibre Channel (1x, 2x, 4x, 8x), CPRI line rates (up to 6.144Gbps)
Compatible Applications	T1/E1, DS3/T3/E3, RS232, RS422, RS485, X.21
Regulatory Compliances	UL, CE, FCC Class A, RoHS, WEEE, REACHFrame Size
Frame Size	Unlimited
Port Type	Fiber:	Protocol Transparent (SFP)
Cable Types	Fiber:	Multimode: 50/125µm, 62.5/125µm Single-mode: 9/125µm
AC Power Requirements	AC Adapter:	100 - 240VAC/50 - 60Hz 0.05A @ 120VAC
DC Power Requirements	DC Input: (Backplane) DC Input: (Terminal Block) DC Input: (AC Adapter)	3.3VDC, 0.5A @ 3.3VDC 5 - 32VDC, 0.3A @ 9VDC (1.0A max) 2-Pin Terminal (non-isolated) 5 - 32VDC, 0.3A @ 9VDC (1.0A max) 2.5mm Barrel Connector
Dimensions (W x D x H)	Plugin: Standalone:	0.85” x 4.5” x 2.8” 21.6 mm x 114.3 mm x 71.1 mm 3.8” x 4.8” x 1.0” 96.5 mm x 121.9 mm x 25.4 mm
Weight	Plug-in: Standalone w/o Adapter: w Adapter:	8 oz.; 226.8 grams 1.0 lb.; 453.6 grams 1.5 lbs.; 680.4 grams
Temperature	Commercial: Wide: Extended: Storage:	0 to 50°C -40 to 60°C -40 to 75°C -40 to 80°C
Humidity	5% to 95% (non-condensing)
Altitude	-100m to 4,000m
MTBF (hrs)	Plugin: Standalone w/o Adapter: w/ US Adapter: w/ Universal Adapter:	1,300,000 1,200,000 250,000 100,000
Warranty	Lifetime warranty with 24/7/365 free Technical Support

iConverter xFF (Data Sheet)

iConverter xFF (Plug-in User Manual)

iConverter xFF (Standalone User Manual)
