X.21 to Fiber Converter | Omnitron Systems

| |

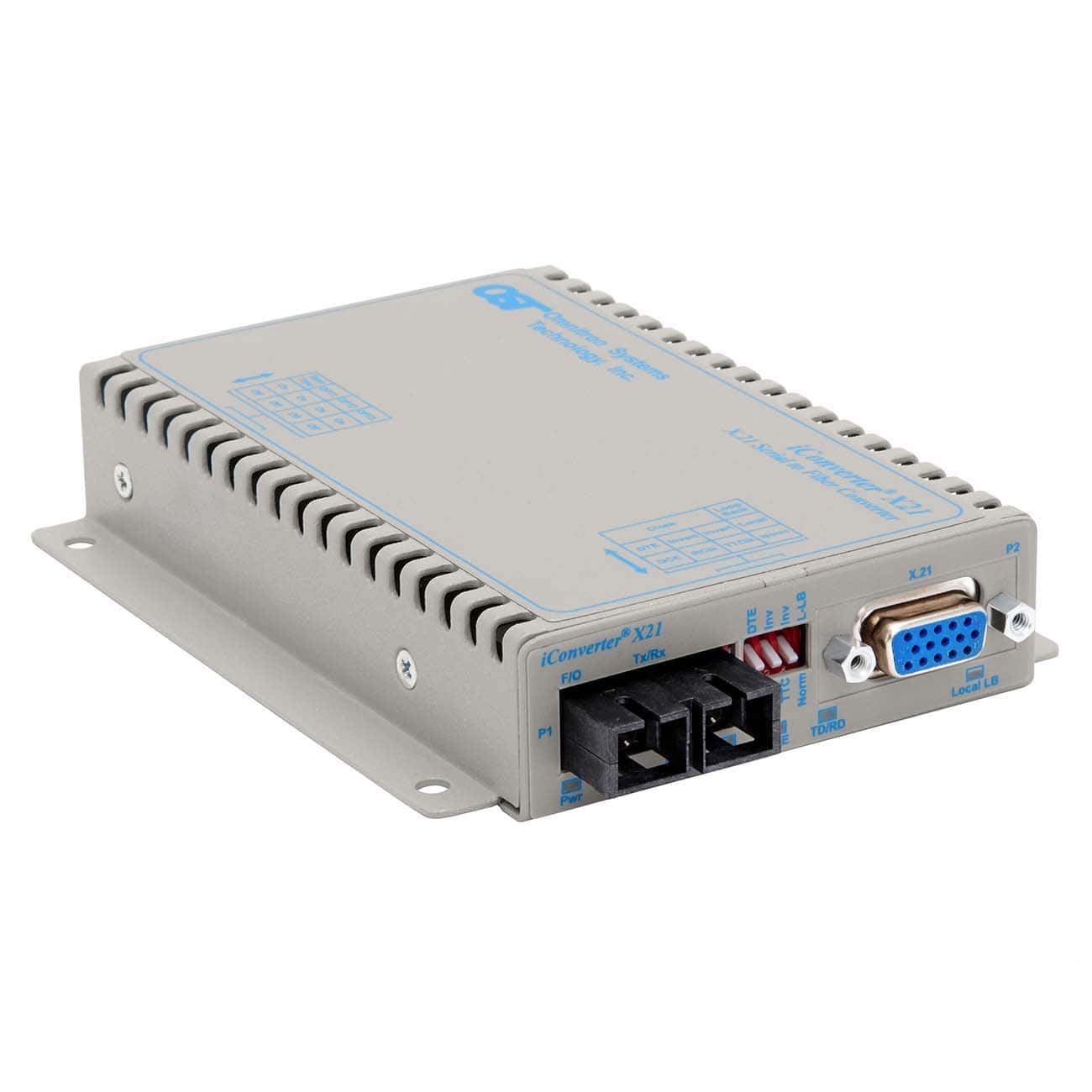

iConverter® X21: RS-530/X.21 DB-15 to Fiber, SC, Multimode Dual Fiber, 1310nm, 5km, DC 2-Pin Terminal, Wide Temperature -40 to 60 deg C

Description	iConverter X21 X.21 Serial to Fiber Media Converter
Standard Compliances	ITU-T X.21
Regulatory Compliances	Safety: EMI: ACT	UL, cUL, CE, UKCA FCC Class A TAA, BAA, NDAA
Environmental	RoHS, WEEE, REACH
Port Type	Serial: Fiber:	High-Density 15 Pin Female DB-15 male and female adapters included ST, SC, LC, Single-fiber SC, SFP
Cable Types	Serial: Fiber:	24 gauge (typical) Multimode: 50/125μm, 62.5/125μm Single-mode: 9/125μm
AC Power Requirements	AC Adapter: (US) AC Adapter: (Universal)	100 - 240VAC/50 - 60Hz 0.05A @ 120VAC 100 - 240VAC/50 - 60Hz 0.05A @ 120VAC
DC Power Requirements	DC Input: (Backplane) DC Input: (Terminal Block) DC Input: (AC Adapter)	3.3VDC, 0.5A @ 3.3VDC 5 - 32VDC, 0.3A @ 9VDC 2-Pin Terminal (non-isolated) 5 - 32VDC, 0.3A @ 9VDC 2.5mm Barrel Connector
Dimensions W x D x H	Plugin: Standalone: With Integrated Brackets:	0.85” x 4.5” x 2.8” (21.6 mm x 114.3 mm x 71.1 mm) 3.8” x 4.8” x 1.0” (96.5 mm x 121.9 mm x 25.4 mm) 3.8” x 4.8” x 1.0” (96.52 mm x 121.92 mm x 25.4 mm)
Weight	Plug-in: Standalone w/o Adapter: w Adapter:	8 oz. (226.8 grams) 1.0 lb. (453.6 grams) 1.5 lbs. (680.4 grams)
Temperature	Commercial: Wide: Storage:	0 to 50°C -40 to 60°C -40 to 80°C
Humidity	5% to 95% (non-condensing)
Altitude	-100m to 4,000m (operational)
MTBF (hrs)	Plugin: Standalone w/o Adapter: w/ US Adapter: w/ Universal Adapter:	500,000 510,000 250,000 100,000
Warranty	Lifetime warranty with 24/7/365 free Technical Support

X.21 Serial to Fiber Media Converter
