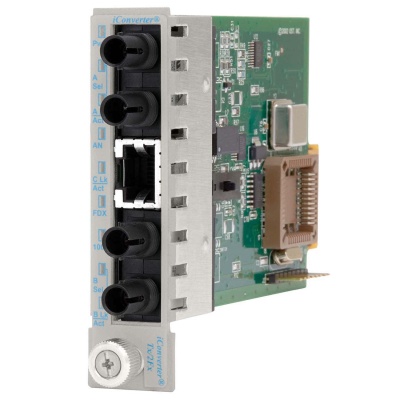

Managed Dual Fiber to Copper Converter

| |

iConverter® Tx/2FX: 100 Mbps RJ-45 to 100 Mbps, ST, Single-Mode Dual Fiber, 1310nm, 30km, Powered by Chassis, Commercial Temperature 0 to 50 deg C

Description	iConverter Tx/2Fx and Tx/2Tx Redundant Fast Ethernet Media Converters
Standard Compliances	IEEE 802.3
Regulatory Compliances	Safety: EMI: ACT:	UL, cUL, CE, UKCA FCC Class A TAA, BAA, NDAA
Environmental	RoHS, WEEE, REACH
Frame Size	Up to 1,536 bytes
Port Types	Copper: Fiber:	10/100BASE-T (RJ-45) 100BASE-FX (ST, SC, LC) 100BASE-LX (ST, SC, LC) 100BASE-ZX (SC, LC) 100BASE-BX (SC Single-Fiber)
Cable Types	Copper: Fiber:	EIA/TIA 568A/B, Cat 5 UTP and higher Multimode: 50/125µm, 62.5/125µm Single-mode: 9/125µm
DC Power Requirements	DC Input: (Backplane)	3.3VDC, 1.1A @ 3.3VDC (Tx/2Fx) 3.3VDC, 0.7A @ 3.3VDC (Tx/2Tx)
Dimensions W x D x H	0.85” x 4.5” x 2.8” (21.6 mm x 114.3 mm x 71.1 mm)
Weight	8 oz. (226.8 grams)
Temperature	Commercial: Wide: Storage:	0 to 50°C -40 to 60°C -40 to 80°C
Humidity	5% to 95% (non-condensing)
Altitude	-100m to 4,000m (operational)
MTBF (hrs)	520,000
Warranty	Lifetime warranty with 24/7/365 free Technical Support

Redundant Fast Ethernet Fiber and UTP Managed Ethernet Media Converter
