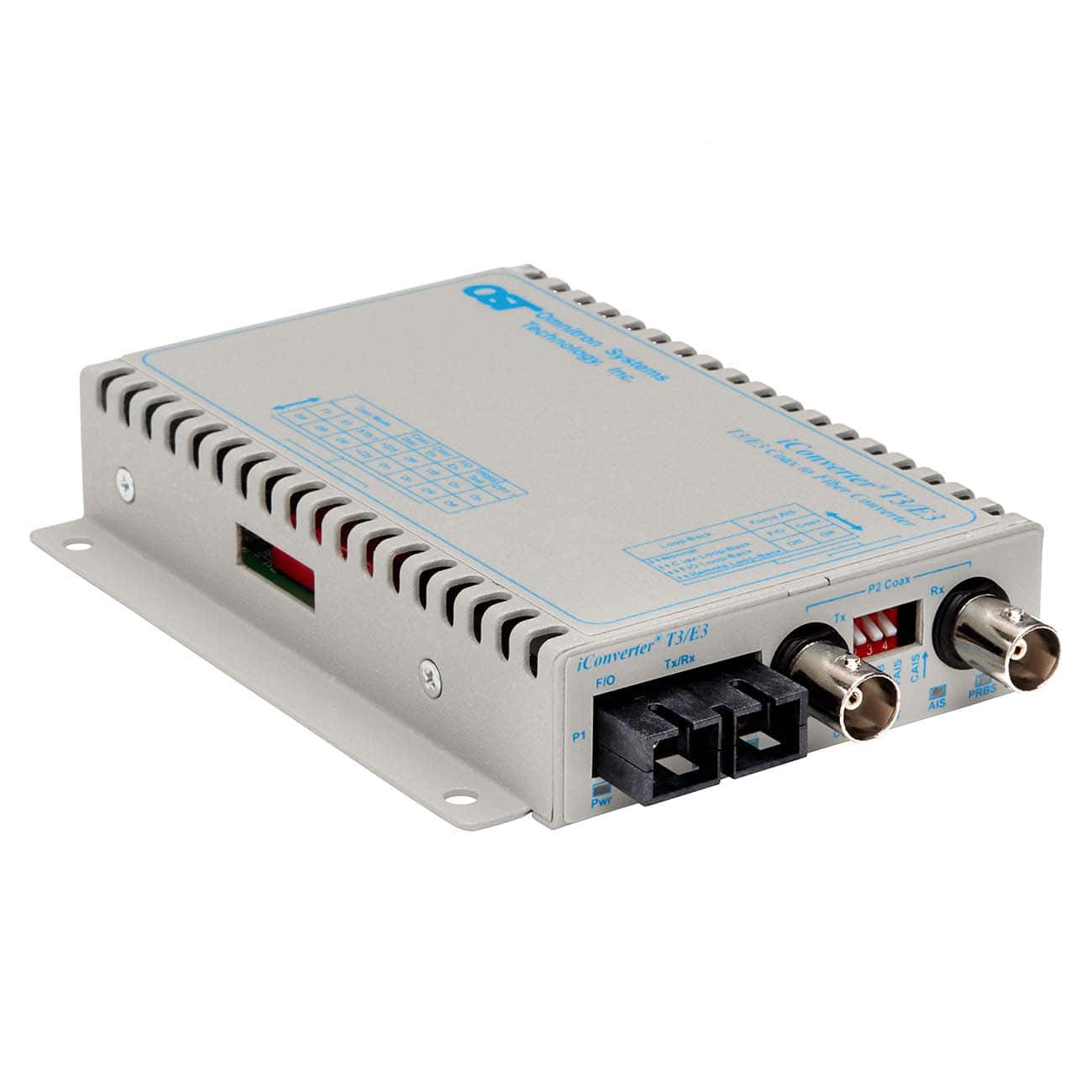

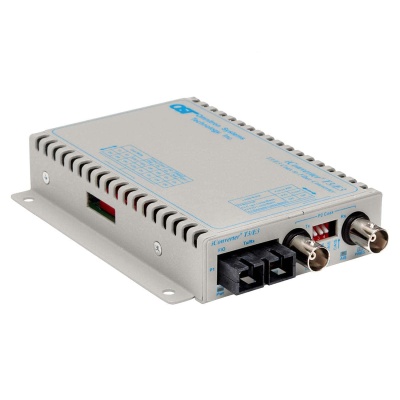

iConverter® T3/E3: T3/E3 Coax to Fiber, SC, Single-Mode Dual Fiber, 1310nm, 30km, Univ 100-240VAC, Commercial Temperature 0 to 50 deg C

Specifications

Specifications

Description	iConverter T3/E3 T3/E3 Managed Media Converter
Data Rates	T3: E3:	44.736Mbps 34.368Mbps
Standard Compliances	ANSI: T1.102, T1.107, T1.404, T1-404a (T3) ITU: G.703, (E3), G.751, O.151 ETSI: EN 300 689, 300 686, 300 687
Regulatory Compliances	Safety: EMI: ACT:	UL, cUL, CE, UKCA FCC Class A TAA, BAA, NDAA
Environmental	RoHS, WEEE, REACH
Port Type	Coax: Fiber:	T3/E3 (BNC) Dual fiber ST, SC, LC and SFP Single-fiber SC and SFP
Cable Types	Coax: Fiber:	RG-59 Coax, 75 ohm; DS3: 380m, E3: 440m Multimode: 50/125µm, 62.5/125µm Single-mode: 9/125µm
AC Power Requirements	AC Adapter: (US) AC Adapter: (Universal)	100 - 240VAC/50 - 60Hz 0.05A @ 120VAC 100 - 240VAC/50 - 60Hz 0.05A @ 120VAC
DC Power Requirements	DC Input: (Backplane) DC Input: (Terminal Block) DC Input: (AC Adapter)	3.3VDC, 0.7A @ 3.3VDC 5 - 32VDC, 0.3A @ 9VDC 2-Pin Terminal (non-isolated) 5 - 32VDC, 0.3A @ 9VDC 2.5mm Barrel Connector
Dimensions W x D x H	Plugin: Standalone:	0.85” x 4.5” x 2.8” (21.6 mm x 114.3 mm x 71.1 mm) 3.8” x 4.8” x 1.0” (96.5 mm x 121.9 mm x 25.4 mm)
Weight	Plug-in: Standalone w/o Adapter: Standalone w Adapter:	8 oz. (226.8 grams) 1.0 lb. (453.6 grams) 1.5 lbs. (680.4 grams)
Temperature	Commercial: Wide: Storage:	0 to 50°C -40 to 60°C -40 to 80°C
Humidity	5% to 95% (non-condensing)
Altitude	-100m to 4,000m (operational)
MTBF (hrs)	Plugin: Standalone w/o Adapter: w/ US Adapter: w/ Universal Adapter:	480,000 490,000 250,000 100,000
Warranty	Lifetime warranty with 24/7/365 free Technical Support

iConverter T3/E3 (Data Sheet)

iConverter T3/E3 Plug-in (User Manual)

iConverter T3/E3 Standalone (User Manual)
