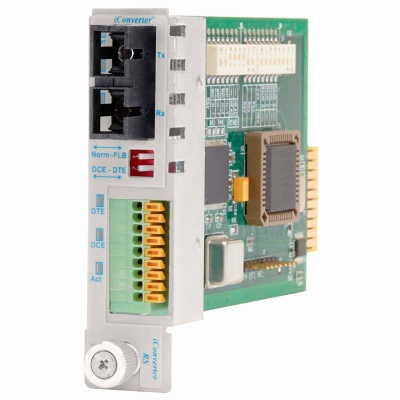

iConverter® RS422/485: RS422/485 Terminal Block to Fiber, SC, Single-Mode Dual Fiber, 1550nm, 120km, Powered by Chassis, Wide Temperature -40 to 60 deg C

Specifications

Specifications

Description	iConverter RS422/485 Managed Serial RS-422 and RS-485 to Fiber Media Converter
Data Rates	Asynchronous:	110 bps to 1,024,000 bps (full-duplex) 110 bps to 921,600 bps (half-duplex)
Standard Compliances	EIA-422/485
Regulatory Compliances	Safety: EMI: ACT:	UL, cUL, CE, UKCA FCC Class A TAA, BAA, NDAA
Environmental	RoHS, WEEE, REACH
Port Type	Serial: Fiber:	DB9 Female or Terminal Block Dual fiber ST, SC and LC Single-fiber SC
Cable Types	Serial: Fiber:	24 gauge (typical) Multimode: 50/125µm, 62.5/125µm Single-mode: 9/125µm
DC Power Requirements	DC Input: (Backplane)	3.3VDC, 0.5A @ 3.3VDC
Dimensions W x D x H	0.85” x 4.5” x 2.8” (21.6 mm x 114.3 mm x 71.1 mm)
Weight	8 oz. (226.8 grams)
Temperature	Commercial: Wide: Storage:	0 to 50°C -40 to 60°C -40 to 80°C
Humidity	5% to 95% (non-condensing)
Altitude	-100m to 4,000m (operational)
MTBF (hrs)	850,000
Warranty	Lifetime warranty with 24/7/365 free Technical Support

iConverter RS422/485 (Data Sheet)

iConverter RS422/485 (User Manual)
