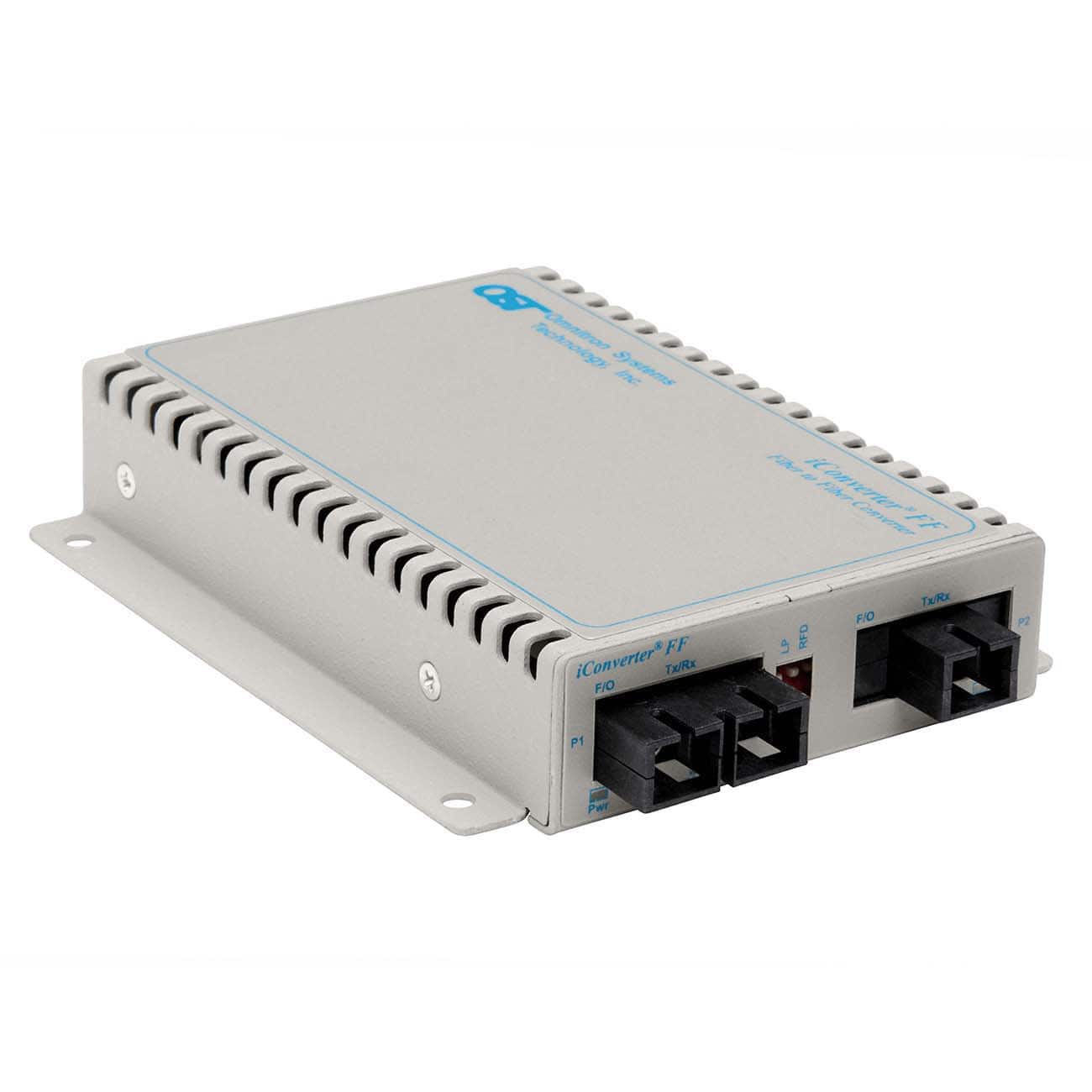

Iconverter FF SC SCSF WM
Lifetime Warranty

OC-3 / STM-1 Fiber to Fiber Managed Converter / Transponder

iConverter® OC3FF

Part Number: 8675-1-D



Add to Quote
icons
  • Description
  • Specifications
  • Documents

iConverter® OC3FF: OC-3/STM-1 to OC-3/STM-1, SC, Multimode Dual Fiber / Single-Mode Single Fiber, 1310nm to 1550nm/1310nm, 5km/20km, US 100-240VAC, Commercial Temperature 0 to 50 deg C

Specifications

Description
 iConverter OC3FF
 Fiber-to-Fiber Managed Converter/Transponder
Standard Compliances
 SONET OC-3, SDH STM-1
Regulatory Compliances

Safety:

EMI:

ACT:

UL, cUL, CE, UKCA

FCC Class A

TAA, BAA,NDAA
Environmental RoHS, WEEE, REACH
Frame Size
Unlimited
Port Type
Fiber:

SONET OC-3 (ST, SC,Single-fiber SC)
Cable Types
Fiber:
Multimode: 50/125µm, 62.5/125µm
Single-mode: 9/125µm
AC Power Requirements
AC Adapter:
(US)

AC Adapter:
(Universal)
100 - 240VAC/50 - 60Hz
0.05A @ 120VAC

100 - 240VAC/50 - 60Hz
0.05A @ 120VAC
DC Power Requirements
DC Input:
     (Backplane)

DC Input:
(Terminal Block)


DC Input:
(AC Adapter)
3.3VDC, 0.5A @ 3.3VDC


5 - 32VDC,
0.3A @ 9VDC (1.0A max)
2-Pin Terminal (non-isolated)

5 - 32VDC,
0.3A @ 9VDC (1.0A max)
2.5mm Barrel Connector
Dimensions
W x D x H
Plugin:


Standalone:
 0.85” x 4.5” x 2.8”
(21.6 mm x 114.3 mm x 71.1 mm)

3.8” x 4.8” x 1.0”
(96.5 mm x 121.9 mm x 25.4 mm)
Weight
Plug-in:

Standalone
w/o Adapter:
w Adapter:
 8 oz. (226.8 grams)


1.0 lb. (453.6 grams)
1.5 lbs. (680.4 grams)
Temperature
Commercial:
Wide:
Storage:
   0 to 50°C
-40 to 60°C
-40 to 80°C
Humidity
 5% to 95% (non-condensing)
Altitude
 -100m to 4,000m (operational)
MTBF (hrs)
Plugin:

Standalone
w/o Adapter:
w/ US Adapter:
w/ Universal  Adapter:
1,100,000


1,100,000
250,000
100,000
Warranty
Lifetime warranty with 24/7/365 free Technical Support

iConverter OC3FF (Data Sheet)

iConverter OC3FF Plug-in (User Manual)

iConverter OC3FF Standalone (User Manual)
