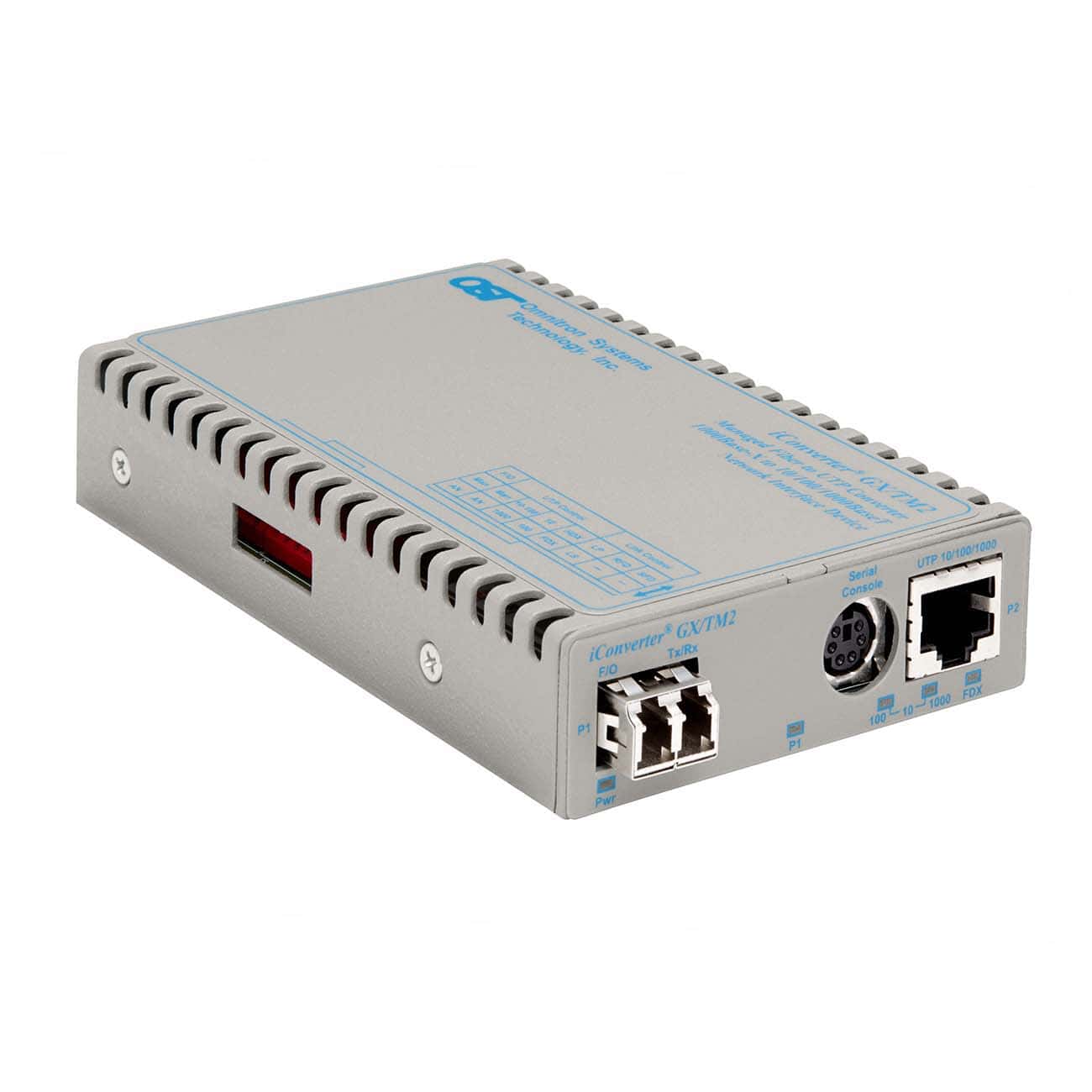

iConverter® GX/TM2: 10/100/1Gbps RJ-45 to 1 Gbps, LC, Single-Mode Dual Fiber, 1550nm, 1110km, US 100-240VAC, Wide Temperature -40 to 60 deg C

Specifications

Specifications

Description	iConverter GX/TM2 10/100/1000BASE-T Copper to Gigabit Fiber Media Converter and Network Interface Device
Standard Compliances	IEEE 802.1Q, 802.1p, 802.3, 802.3ah, 802.1ad RFC 2819 (RMON), 2863 (IF-MIB), 2131 (DHCP) MEF 9, 14, 21
Regulatory Compliances	Safety: EMI: ACT:	UL, cUL, CE, NEBS Level 3, UKCA FCC Class A TAA, BAA, NDAA
Environmental	RoHS, WEEE, REACH
Management	IPv4, Telnet, SNMPv1, SNMPv2c, SNMPv3, Serial Console
Frame Size	Up to 10,240 bytes
Port Types	Copper: Fiber: Serial:	10/100/1000BASE-T (RJ-45) 1000BASE-X Dual Fiber (ST, SC, LC, SFP) 1000BASE-BX Single-Fiber (SC, SFP) RS-232 (Mini DIN-6 female) Mini DIN-6 to DB-9 adapter included
Cable Types	Copper: Fiber: Serial:	EIA/TIA 568 A/B, Category 5 and higher Multimode: 50/125µm, 62.5/125µm Single-mode: 9/125µm RS-232, 22 to 24 AWG, 12 to 50 pF/ft
AC Power Requirements	AC Adapter: (US) AC Adapter: (Universal)	100 - 240VAC/50 - 60Hz 0.08A @ 120VAC (max) 100 - 240VAC/50 - 60Hz 0.08A @ 120VAC (max)
DC Power Requirements	DC Input: (Backplane) DC Input: (Terminal Block) DC Input: (AC Adapter)	3.3VDC, 1.1A @ 3.3VDC 8 - 15VDC, 0.6A @ 9VDC max 2-Pin Terminal (non-isolated) 8 - 15VDC, 0.6A @ 9VDC max 2.5mm Barrel Connector
Dimensions (W x D x H)	Plugin: Standalone: w/mounting brackets:	0.85” x 4.5” x 2.8” (21.6 mm x 114.3 mm x 71.1 mm) 3.1” x 4.8” x 1.0” (78.74 mm x 121.92 mm x 25.4 mm) 3.8” x 4.8” x 1.0” (96.5 mm x 121.9 mm x 25.4 mm)
Weight	Plug-in: Standalone w/o AC adapter: w/ AC adapter:	8 oz.; 226.8 grams 1.0 lb.; 453.6 grams 1.5 lbs.; 680.4 grams
Temperature	Commercial: Wide: Extended: Storage:	0 to 50°C -40 to 60°C -40 to 75°C -40 to 80°C
Humidity	5% to 95% (non-condensing)
Altitude	-100m to 4,000m (operational)
MTBF (hrs)	Plug-in: w/o AC adapter: w/ AC adapter (US): w/ AC adapter (Unv):	450,000 450,000 250,000 100,000
Warranty	Lifetime warranty with 24/7/365 free Technical Support
