Part Number: 8527-3W

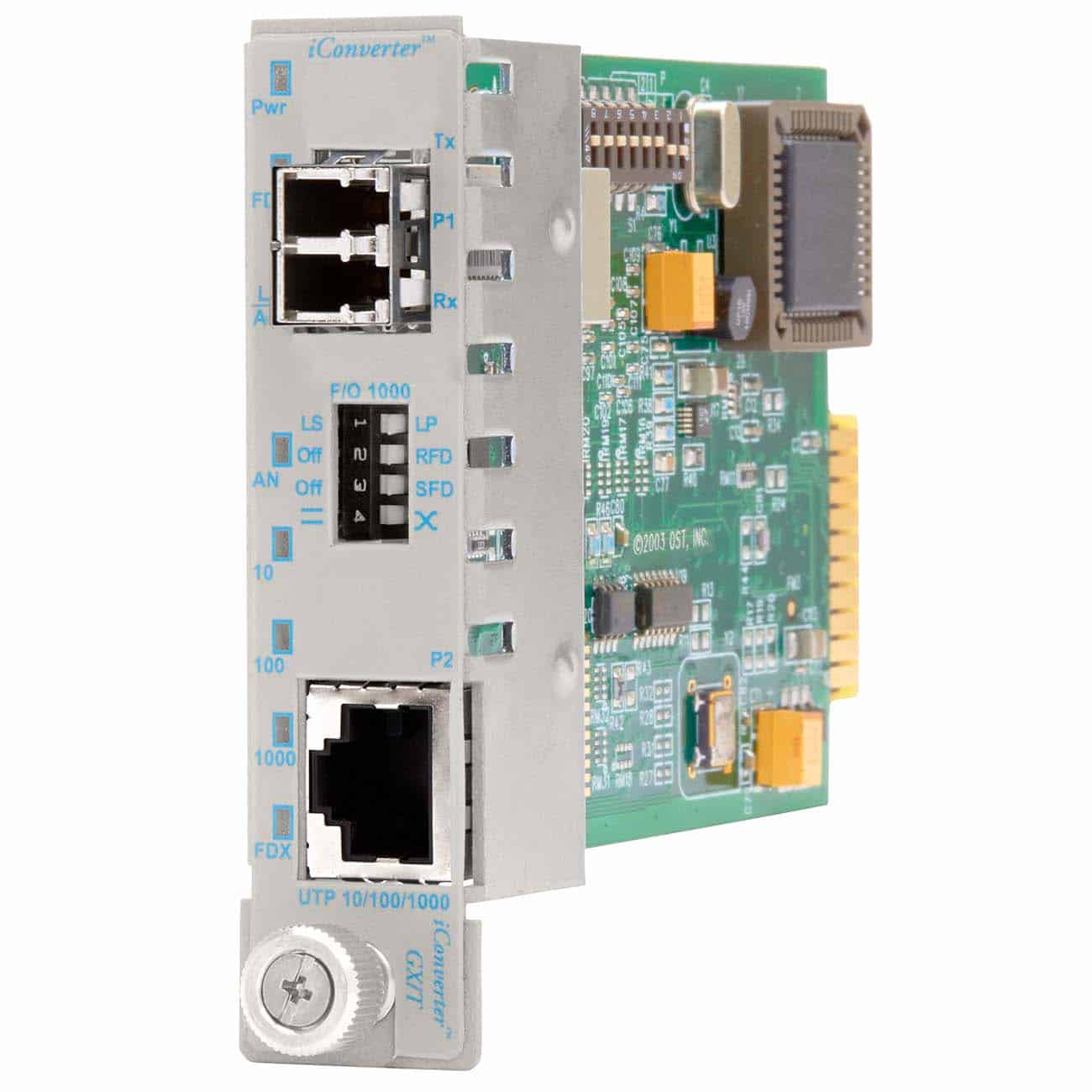

iConverter® GX/T: 10/100/1Gbps RJ-45 to 1 Gbps, LC, Single-Mode Dual Fiber, 1550nm, 80km, Powered by Chassis, Wide Temperature -40 to 60 deg C

Description	iConverter GX/T 10/100/1000BASE-T to 1000BASE-X Fiber Media Converter
Standard Compliances	IEEE 802.3, 802.1Q, 802.1p, 802.1ad RFC 2819 (RMON)
Regulatory Compliances	UL, CE, FCC Class A, RoHS2 (6/6), WEEE, REACH
Frame Size	Up to 1,536 bytes
Port Types	Copper: Fiber:	10/100/1000BASE-T (RJ-45) 1000BASE-SX (ST, SC, LC) 1000BASE-LX (SC, LC) 1000BASE-ZX (SC,) 1000BASE-BX (SC)
Cable Types	Copper: Fiber:	EIA/TIA 568A/B, Cat 5 UTP and higher Multimode: 50/125µm, 62.5/125µm Single-mode: 9/125µm
DC Power Requirements	DC Input: (Backplane):	3.3VDC, 1.4A @ 3.3VDC
Dimensions	W: 0.85” x D: 4.5” x H: 2.8” L: 21.6 mm x B: 114.3 mm x H: 71.1 mm
Weight	8 oz.; 226.8 grams
Temperature	Commercial: Wide: Storage:	0 to 50°C -40 to 60°C -40 to 80°C
Humidity	5 to 95% (non-condensing)
Altitude	-100m to 4,000m
MTBF (hrs)	830,000
Warranty	Lifetime warranty with 24/7/365 free Technical Support
