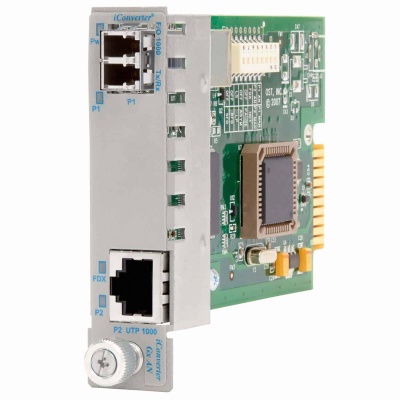

Iconverter GX AN LC PI
Lifetime Warranty

1000BASE-T to 1000BASE-X Managed Media Converter

iConverter® Gx AN

Part Number: 8507N-1

Add to Quote
icons
  • Description
  • Specifications
  • Documents

iConverter® Gx AN: 1 Gbps RJ-45 to 1 Gbps, LC, Single-Mode Dual Fiber, 1310nm, 12km, Powered by Chassis, Commercial Temperature 0 to 50 deg C

Specifications

Description
  iConverter Gx AN
 1000BASE-T Copper to 1000BASE-X Fiber Media Converter
Standard Compliances
IEEE 802.3
Regulatory Compliances
Safety:
EMI:
ACT:
UL, cUL, CE, UKCA
FCC Class A
TAA,BAA, NDAA
Environmental
RoHS, WEEE, REACH
Frame Size
Supports frame sized up to 10k bytes
Port Types
Copper:

Fiber:
1000BASE-T (RJ-45)

1000BASE-SX (ST, SC, LC, SFP)
1000BASE-LX (ST, SC, LC, SFP)
1000BASE-ZX (SC, SFP)
1000BASE-BX (SC, SFP)
Cable Types
Copper:

Fiber:
EIA/TIA 568A/B, Cat 5 UTP and higher

Multimode: 50/125µm, 62.5/125µm
Single-mode: 9/125µm
AC Power Requirements
AC Adapter:
(US)

AC Adapter:
(Universal)
100 - 240VAC/50 - 60Hz
0.04A @ 120VAC (max)

100 - 240VAC/50 - 60Hz
0.04A @ 120VAC (max)
DC Power Requirements
DC Input:
(Backplane)

DC Input:
(Terminal Block)

DC Input:
(AC Adapter)
3.3VDC, 0.7A @ 3.3VDC (typical)


8 - 15VDC, 0.3A @ 9VDC (max)
2-Pin Terminal (non-isolated)

8 - 15VDC, 0.3A @ 9VDC (max)
2.5mm Barrel Connector
Dimensions
W x D x H
Plugin:


Standalone:


w/ Wallmount:
0.85” x 4.5” x 2.8”
(21.6 mm x 114.3 mm x 71.1 mm)

3.1” x 4.8” x 1.0”
(78.7 mm x 121.9 mm x 25.4 mm)

3.8” x 4.8” x 1.0”
(96.5 mm x 121.9 mm x 25.4 mm)
Weight
Plug-in:

Standalone:
w/o AC Adapter:
 w AC Adapter:
8 oz. (226.8 grams)


1.0 lb.(453.6 grams)
1.5 lbs.(680.4 grams)
Temperature
Commercial:
Wide:
Storage:
    0 to 50°C
 -40 to 60°C
 -40 to 80°C
Humidity
 5% to 95% (non-condensing)
Altitude
 -100m to 4,000m (operational)
MTBF (hrs)
Plugin:

Standalone
w/o Adapter:
w/ US Adapter:
w/ Universal Adapter:
870,000


1,100,000
250,000
100,000
Warranty
Lifetime warranty with 24/7/365 free Technical Support

iConverter Gx AN (Data Sheet)

iConverter Gx AN Standalone (Quick Start)

iConverter Gx AN Plug-in (Quick Start)

iConverter Gx AN (User Manual)
