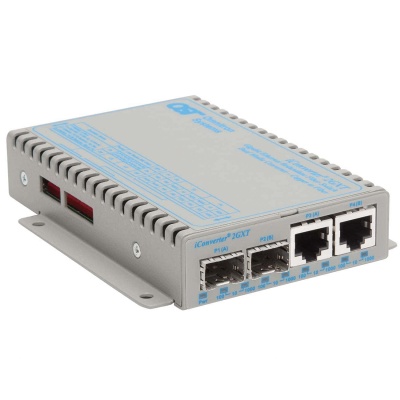

iConverter 2GXT 2SFP 2RJ45
Lifetime Warranty

10/100/1000BASE-T to 100/1000BASE-X 2-Channel Ethernet Media Converter

iConverter® 2GXT

Part Number: 8484-4-D

Add to Quote
icons
  • Description
  • Specifications
  • Documents

iConverter® 2GXT: 10/100/1Gbps RJ-45 to 100Mbps/1Gbps, SFP, Fiber Type depends on SFP, Wavelength depends on SFP, Distance depends on SFP, US 100-240VAC, Commercial Temperature 0 to 50 deg C

Specifications

Description
 iConverter 2GXT
 Dual 10/100/1000BASE-T UTP to 100/1000BASE-X Fiber Media Converter
Standard Compliances
IEEE 802.3, 802.1Q, 802.1p, 802.1ad
RFC 2819 (RMON)
Regulatory Compliances

 Safety:

EMI:

ACT:

UL, cUL, CE, UKCA

FCC Class A

TAA, BAA, NDAA
Environmental
RoHS, WEEE, REACH
Frame Size
Up to 10,240 bytes
Port Types
Copper:

Fiber:
10/100/1000BASE-T

100BASE-X
1000BASE-SX
1000BASE-LX
1000BASE-ZX
1000BASE-BX
Cable Types
Copper:

Fiber:
EIA/TIA 568A/B, Cat 5 UTP and higher

Multimode: 50/125µm, 62.5/125µm
Single-mode: 9/125µm
AC Power Requirements
AC Adapter:
(US)

AC Adapter:
(Universal)
100 - 240VAC/50 - 60Hz
0.06A @ 120VAC (max)

100 - 240VAC/50 - 60Hz
0.06A @ 120VAC (max)
DC Power Requirements
DC Input:
(Backplane)

DC Input:
(Terminal Block)

DC Input:
(AC Adapter)
3.3VDC, 2.4A @ 3.3VDC*


7 - 60VDC, 0.4A @ 12VDC
2-Pin Terminal (non-isolated)

7 - 60VDC, 0.4A @ 12VDC
2.5mm Barrel Connector
Dimensions
W x D x H
Plugin:


Standalone:
0.85” x 4.5” x 2.8”
(21.6 mm x 114.3 mm x 71.1 mm)

3.8” x 4.8” x 1.0”
(96.5 mm x 121.9 mm x 25.4 mm)
Weight
Plug-in:

Standalone
w/o Adapter:
w Adapter:
8 oz. (226.8 grams)


1.0 lb. (453.6 grams)
1.5 lbs. (680.4 grams)
Temperature
Commercial:
Wide:
Extended:
Storage:
    0 to 50°C
 -40 to 60°C
 -40 to 75°C
 -40 to 80°C
Humidity
 5% to 95% (non-condensing)
Altitude
 -100m to 4,000m (operational)
MTBF (hrs)
Plugin:

Standalone
w/o Adapter:
w/ US Adapter:
w/ Universal Adapter:
520,000


722,000
250,000
100,000
Warranty
 Lifetime warranty with 24/7/365 free Technical Support
*1-Module (8.3 watt) and 2-Module (16.5 watt) high flow chassis are required when used with the plug-in module.

iConverter 2GXT (Data Sheet)

iConverter 2GXT Plug-in Module (User Manual)

iConverter 2GXT Standalone (User Manual)
