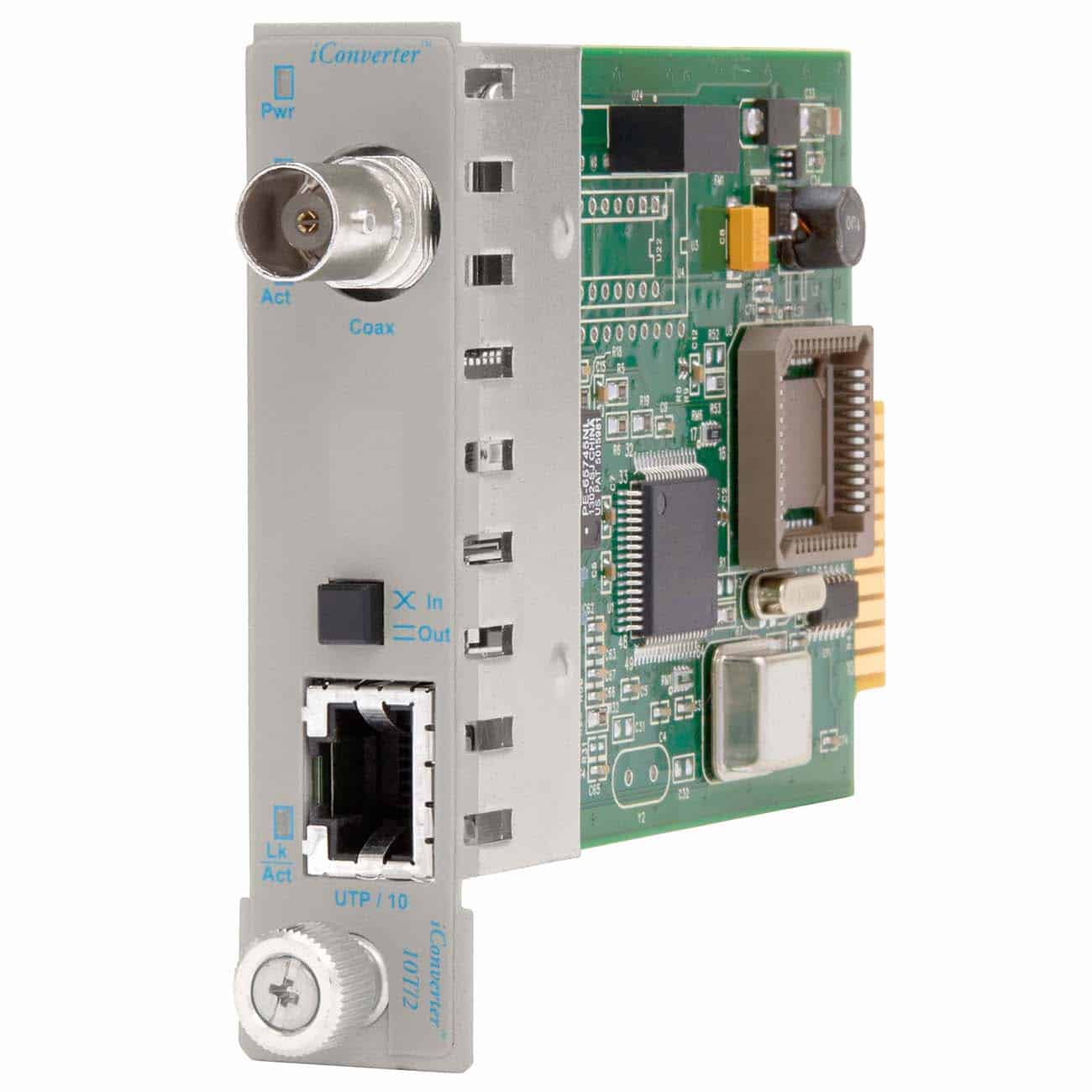

Part Number: 8340-0W

iConverter® 10T/2: 10 Mbps Coax to 10 Mbps, RJ-45, Copper / Coax, , 100m, Powered by Chassis, Wide Temperature -40 to 60 deg C

Description	iConverter 10T/2 10BASE-T to 10BASE-2 Media Converter
Standard Compliances	IEEE 802.3
Regulatory Compliances	Safety: EMI: ACT	UL, cUL, CE, NEBS Level 3, UKCA FCC Class A TAA, BAA, NDAA
Environmental	RoHS, WEEE, REACH
Frame Size	Unlimited
Port Type	Copper: Coax:	10BASE-T (RJ-45) 10BASE-2 (BNC)
Cable Types	Copper: Coax:	EIA/TIA 568A/B, Cat 5 UTP and higher 50 ohm RG-58U or equivalent
DC Power Requirements	DC Input: (Backplane)	3.3VDC, 1.0A @ 3.3VDC
Dimensions W x D x H	0.85” x 4.5” x 2.8” (21.6 mm x 114.3 mm x 71.1 mm)
Weight	8 oz. (226.8 grams)
Temperature	Commercial: Wide: Storage:	0 to 50°C -40 to 60°C -40 to 80°C
Humidity	5% to 95% (non-condensing)
Altitude	-100m to 4,000m (operational)
MTBF (hrs)	720,000
Warranty	Lifetime warranty with 24/7/365 free Technical Support
