Iconverter 100FX TX SCSF PI
Lifetime Warranty

100BASE-TX to 100BASE-FX Managed Ethernet Media Converter

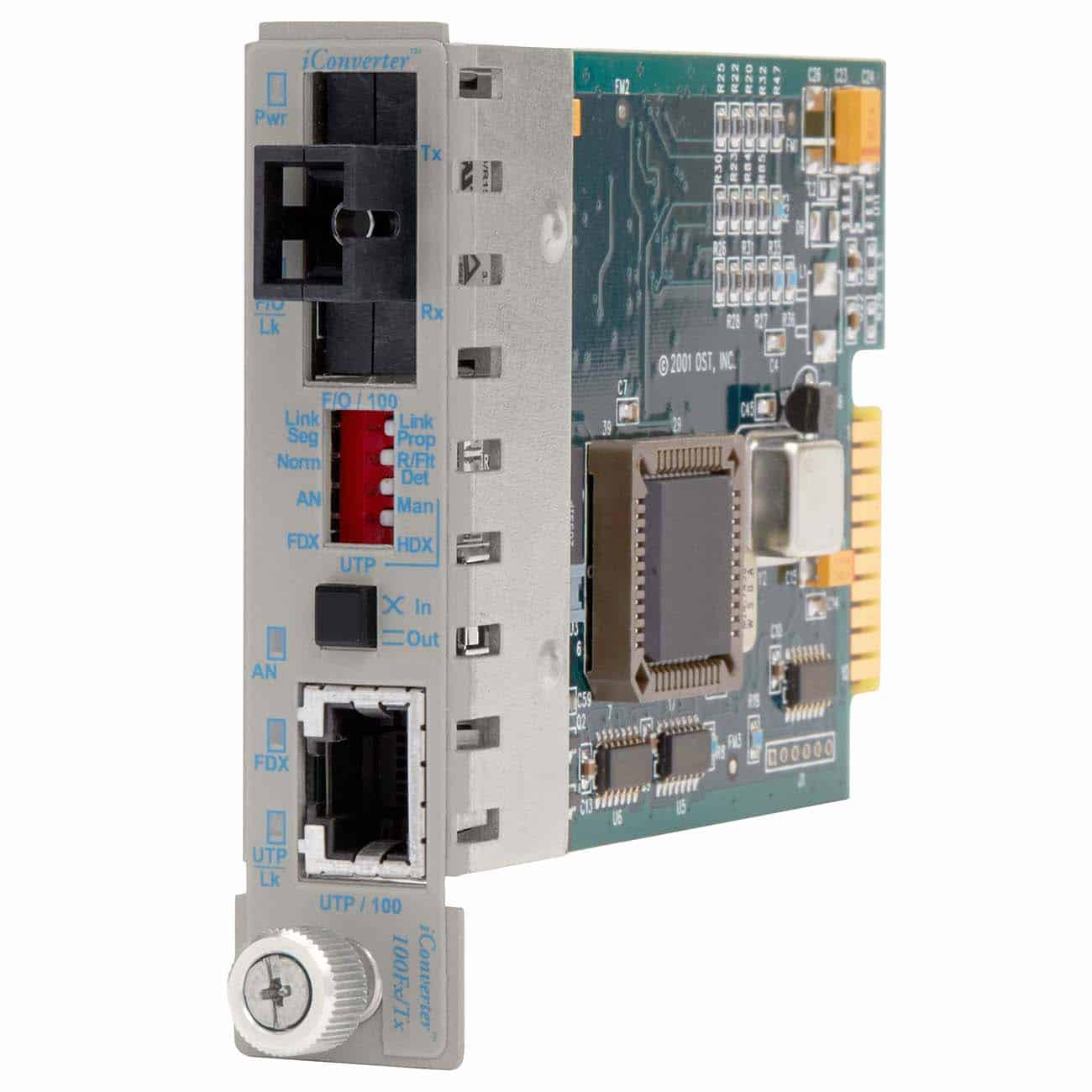

iConverter® 100Fx/Tx

Part Number: 8370-2

Add to Quote
icons
  • Description
  • Specifications
  • Documents

iConverter® 100Fx/Tx: 100 Mbps RJ-45 to 100 Mbps, SC, Single-Mode Single Fiber, 1310nm/1550nm, 40km, Powered by Chassis, Commercial Temperature 0 to 50 deg C

Specifications

Description
 iConverter 100Fx/Tx
 100BASE-TX Copper to 100BASE-FX Fiber Media Converter
Standard Compliances
IEEE 802.3
Regulatory Compliances
Safety:
EMI:
ACT:
UL, CE, NEBS Level 3, UKCA
FCC Class A
TAA, BAA,NDAA
Environmental RoHS, WEEE, REACH
Frame Size
Unlimited
Port Type
Copper:

Fiber:

100BASE-TX (RJ-45)

100BASE-FX (ST, SC, LC)
100BASE-LX (ST, SC, LC)
100BASE-ZX (SC, LC)
100BASE-BX (SC Single-Fiber)
Cable Types
Copper:
Fiber:
EIA/TIA 568A/B, Cat 5 UTP and higher
Multimode: 50/125µm, 62.5/125µm
Single-mode: 9/125µm
DC Power Requirements
DC Input (Backplane):
3.3VDC, 0.7A @ 3.3VDC
Dimensions
W x D x H		 0.85” x 4.5” x 2.8” (21.6 mm x 114.3 mm x 71.1 mm)
Weight 8 oz. (226.8 grams)
Temperature
Commercial:
Wide:
Extended:
Storage:
   0 to 50°C
-40 to 60°C
-40 to 75°C
-40 to 80°C
Humidity
 5% to 95% (non-condensing)
Altitude
 -100m to 4,000m (operational)
MTBF (hrs) 730,000
Warranty
Lifetime warranty with 24/7/365 free Technical Support

iConverter 100Fx/Tx (Data Sheet)

iConverter 100Fx/Tx (User Manual)
