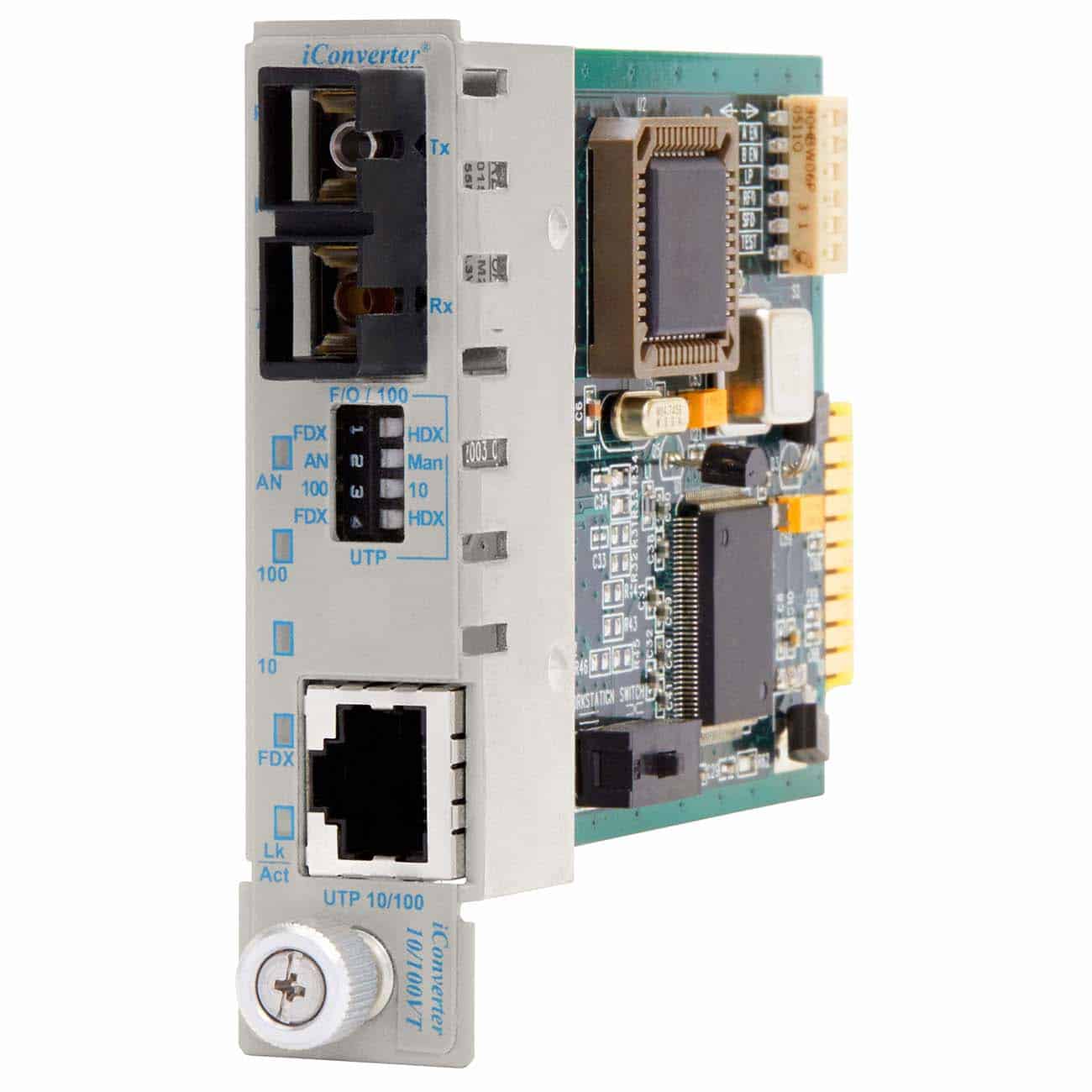

Iconverter 10 100VT SC PI
Lifetime Warranty

10/100BASE-T UTP to 100BASE-X Ethernet Media Converter with VLAN

iConverter® 10/100VT

Part Number: 8803-3

Add to Quote
icons
  • Description
  • Specifications
  • Documents

iConverter® 10/100VT: 10/100 Mbps RJ-45 to 100 Mbps, SC, Single-Mode Dual Fiber, 1550nm, 120km, Powered by Chassis, Commercial Temperature 0 to 50 deg C

Specifications

Model Type
10/100VT
10/100 VLAN Managed Ethernet Media Converter
Protocols
 100BASE-FX, 10BASE-T, or
100BASE-TX
(1536 bytes maximum frame size)
Copper Connectors
RJ-45
Fiber Connectors
 SC, ST, LC, Single-Fiber SC
Controls
 UTP X-over, LS/LP, RFD, BP Enable,
SFD, Auto/Man, 10/100, FDX/HDX
LED Displays Power, FO link, UTP link,
Auto, FDX/HDX, 10/100
Dimensions
 W:0.85" x D:4.5" x H:2.8"
Weight
 8 oz.
Compliance
 UL, CE, FCC Class A, RoHS2 (6/6), WEEE, REACH
Power Requirement
 0.7A @ 3.3VDC (typical)
Temperature
 Commercial: 0 to 50º C
Wide: -40 to 60º C
Storage: -40 to 80º C
Humidity
 5 to 95% (non-condensing)
Altitude
 -100m to 4000m
MTBF (hrs)
 910,000

iConverter 10/100VT (Data Sheet)

iConverter 10/100VT (User Manual)
