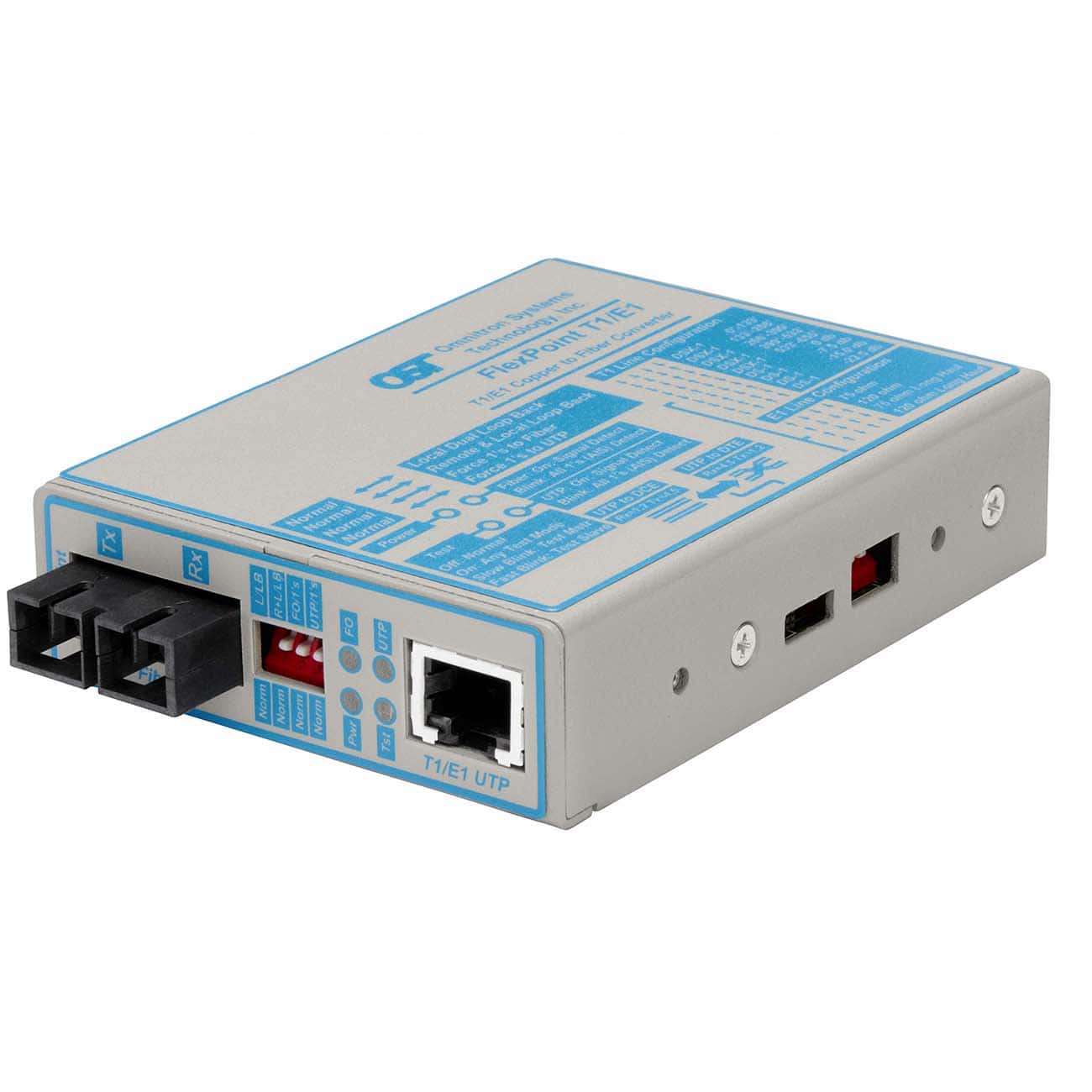

Unmanaged T1/E1 UTP to Fiber Converter | FlexPoint

| |

FlexPoint® T1/E1: T1/E1 RJ-45 to Fiber, SC, Multimode Dual Fiber, 1310nm, 5km, Univ 100-240VAC, Commercial Temperature 0 to 50 deg C

Description	FlexPoint T1/E1 T1/E1 UTP to Fiber Media Converter
Data Rates	T1 or ISDN PRI: E1:	1.544Mbps 2.048Mbps
Standard Compliances	ANSI, AT&T, ITU AND ETSI
Regulatory Compliances	Safety: EMI: ACT:	UL, cUL, CE, UKCA FCC Class A TAA, BAA, NDAA
Environmental	RoHS, WEEE, REACH
Port Types	Copper: Fiber:	T1/E1 (RJ-45/RJ-48) Proprietary (ST, SC)
Cable Types	Copper: Fiber:	Category 3 or better (T1: 100 Ohm, E1: 120 Ohm) (Active Pairs are Pins 1, 2 and 4, 5) Multimode: 50/125µm, 62.5/125µm Single-mode: 9/125µm
AC Power Requirements	AC Adapter:	100 - 240VAC/50 - 60Hz 0.05A @ 120VAC (typical)
DC Power Requirements	Voltage Range: Nominal Voltage: Nominal Power:	Barrel 6.0 to 15.0VDC 9VDC 0.5A @ 9VDC	Molex Connector 4.75 to 5.25VDC 5VDC 0.6A @ 5VDC
Dimensions W x D x H	3.0" x 4.0" x 1.0" (76.2 mm x 101.6 mm x 25.4 mm)
Weight	w/o AC Adapter:	6 oz. (170.1 grams)
Temperature	Commercial: Storage:	0 to 50°C -40 to 80° C
Humidity	5% to 95% (non-condensing)
Altitude	-100m to 4,000m (operational)
MTBF (hrs)	Without AC Adapter (-0): With AC Adapter (-1): With AC Adapter (-2):	680,000 250,000 100,000
Warranty	Lifetime warranty with 24/7/365 free Technical Support

T1/E1 Copper to Fiber Media Converter
