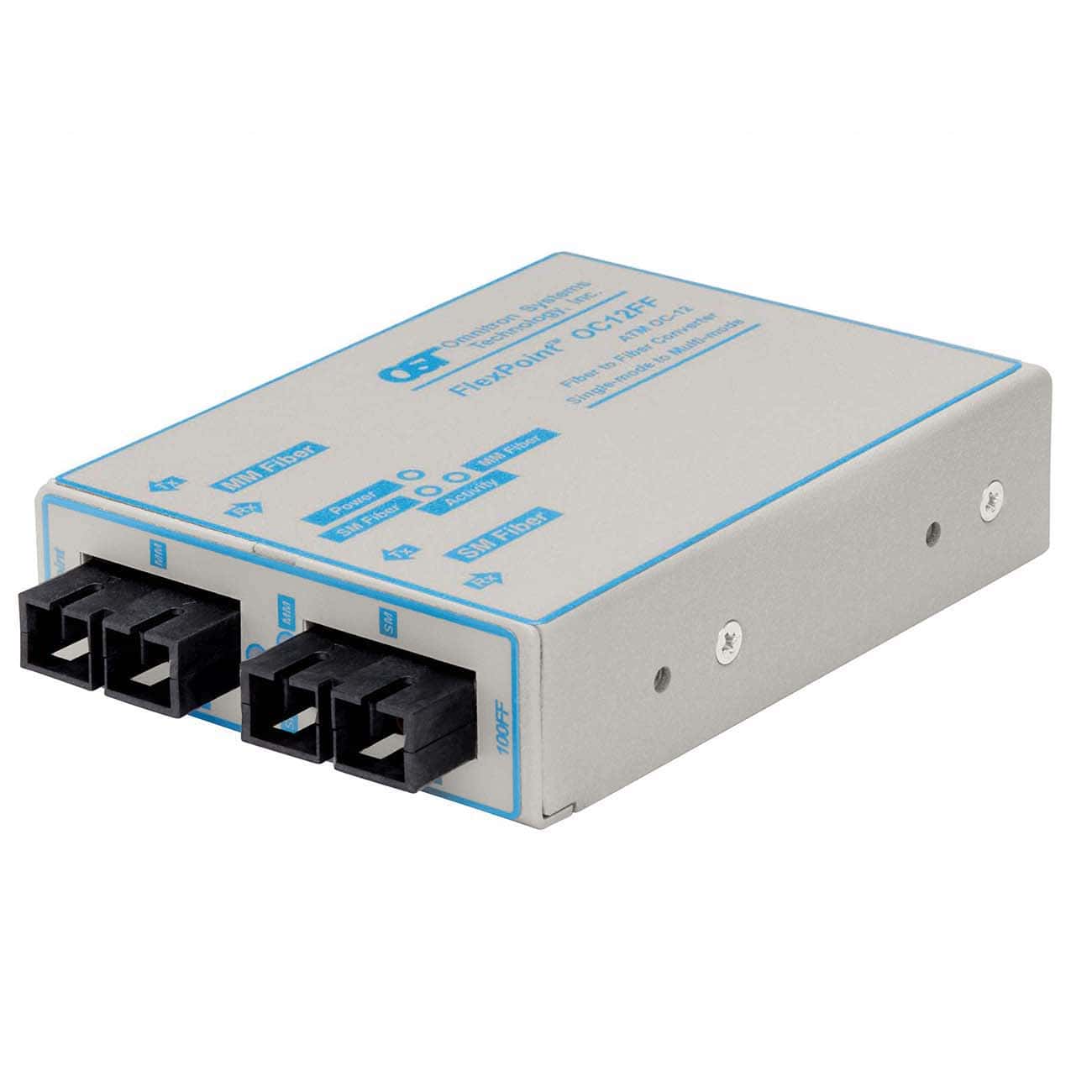

FlexPoint OC12FF 2XSC

Lifetime Warranty

OC-12 / STM-4 Fiber-to-Fiber Converter / Transponder

FlexPoint® OC12FF

Part Number: 4461-0

Description
Specifications
Documents

FlexPoint® OC12FF: OC12/STM4 to OC12/STM4, SC / SC, Multimode / Single-mode, 1310nm / 1310nm, 550m / 5km, No AC/DC Power Adapter, Commercial Temperature 0 to 50 deg C

Specifications

Specifications

Description	FlexPoint OC12FF Fiber-to-Fiber Converter/Transponder
Standard Compliances	SONET OC-12, SDH STM-4
Regulatory Compliances	Safety: EMI: ACT:	UL, cUL, CE, UKCA FCC Class A TAA, BAA, NDAA
Environmental	RoHS, WEEE, REACH
Frame Size	Supports unlimited frame sizes
Port Types	Fiber:	OC-12 (ST, SC)
Cable Types	Fiber:	Multimode: 50/125µm, 62.5/125µm Single-mode: 9/125µm
AC Power Requirements	AC Adapter:	100 - 240VAC/50 - 60Hz 0.04A @ 120VAC (typical)
DC Power Requirements	Voltage Range: Nominal Voltage: Nominal Power:	Barrel Connector 6.0 to 15.0VDC 9VDC 0.2A @ 9VDC	Molex Connector 4.75 to 5.25VDC 5VDC 0.5A @ 5VDC
Dimensions W x D x H	3.0" x 4.0" x 1.0" (76.2 mm x 101.6 mm x 25.4 mm)
Weight	w/o AC Adapter:	6 oz. (170.1 grams)
Temperature	Commercial: Storage:	0 to 50°C -40 to 80° C
Humidity	5% to 95% (non-condensing)
Altitude	-100m to 4,000m (operational)
MTBF (hrs)	w/o AC Adapter (-0, -9): w/ AC Adapter (-1): w/ AC Adapter (-2):	2,600,000 250,000 100,000
Warranty	Lifetime warranty with 24/7/365 free Technical Support

FlexPoint OC12FF (Data Sheet)

FlexPoint OC12FF (User Manual)
