Part Number: 4706-1

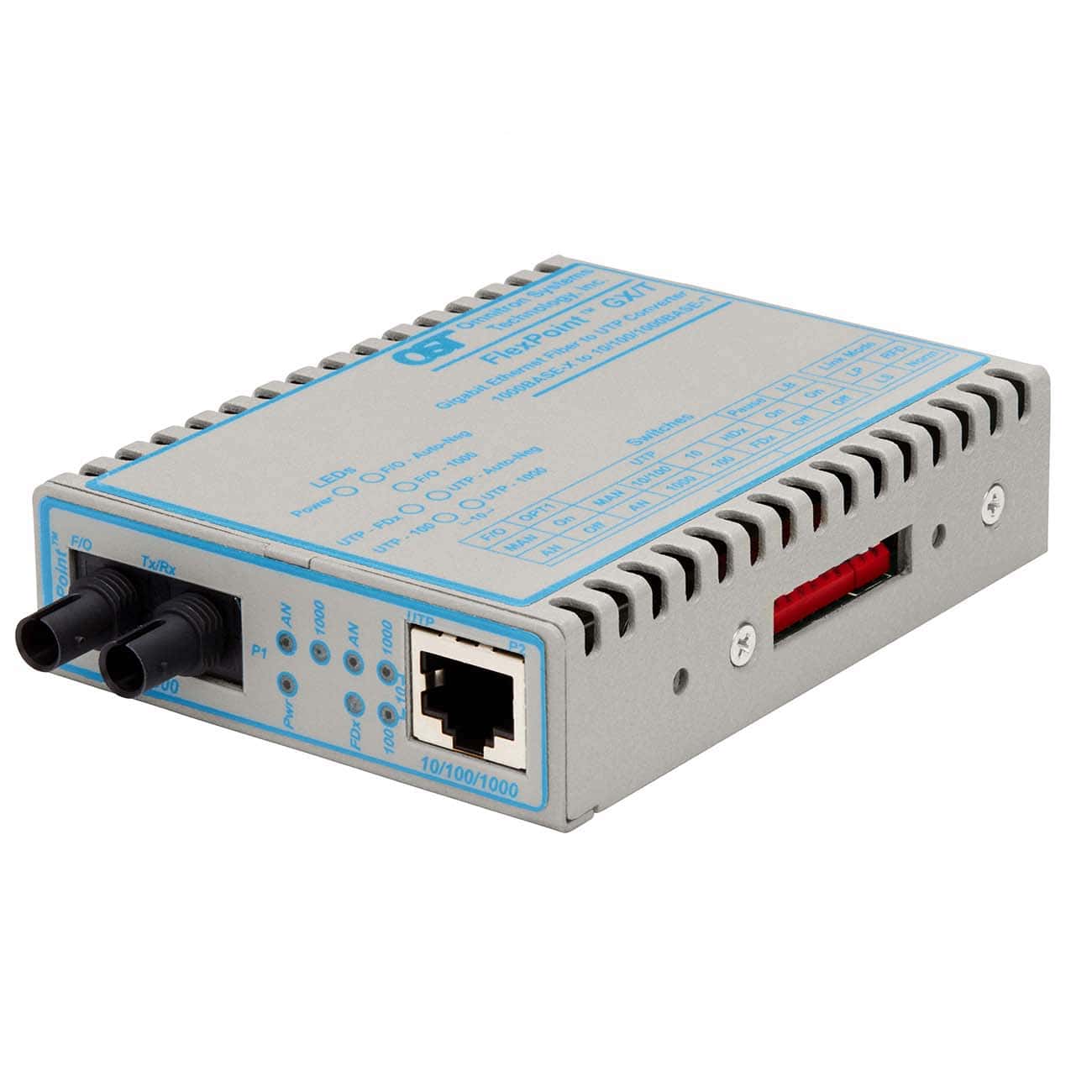

FlexPoint® GX/T: 10/100/1Gbps RJ-45 to 100Mbps/1Gbps, ST, Multimode Dual Fiber, 850nm, 220m, US 100-240VAC, Commercial Temperature 0 to 50 deg C

Description	FlexPoint GX/T 10/100/1000BASE-T Copper to 100BASE-FX/1000BASE-X Fiber Media Converter
Standard Compliances	IEEE 802.3
Regulatory Compliances	Safety: EMI: ACT:	UL, cUL, CE, UKCA FCC Class A TAA, BAA, NDAA
Environmental	RoHS, WEEE, REACH
Frame Size	Up to 10,240 bytes
Port Types	Copper: Fiber:	10/100/1000BASE-T (RJ-45) 100BASE-FX (SFP) 1000BASE-X (ST, SC, SFP)
Cable Types	Copper: Fiber:	EIA/TIA 568A/B, Cat 5 UTP and higher Multimode: 50/125µm, 62.5/125µm Single-mode: 9/125µm
AC Power Requirements	AC Adapter:	100 - 240VAC/50 - 60Hz 0.03A @ 120VAC (typical)
DC Power Requirements	Voltage Range: Nominal Voltage: Nominal Power:	Barrel Connector 5.0 to 32VDC 9VDC 0.3A @ 9VDC	Molex Connector 4.75 to 5.25VDC 5VDC 0.5A @ 5VDC
Dimensions W x D x H	3.0" x 4.0" x 1.0" (76.2 mm x 101.6 mm x 25.4 mm)
Weight	w/o AC Adapter:	6 oz. (170.1 grams)
Temperature	Commercial: Wide: Storage:	0 to 50°C -40 to 60°C -40 to 80° C
Humidity	5% to 95% (non-condensing)
Altitude	-100m to 4,000m (operational)
MTBF (hrs)	w/o AC Adapter (-0): w/ AC Adapter (-1): w/ AC Adapter (-2):	900,000 250,000 100,000
Warranty	Lifetime warranty with 24/7/365 free Technical Support
