Part Number: 4680-8W

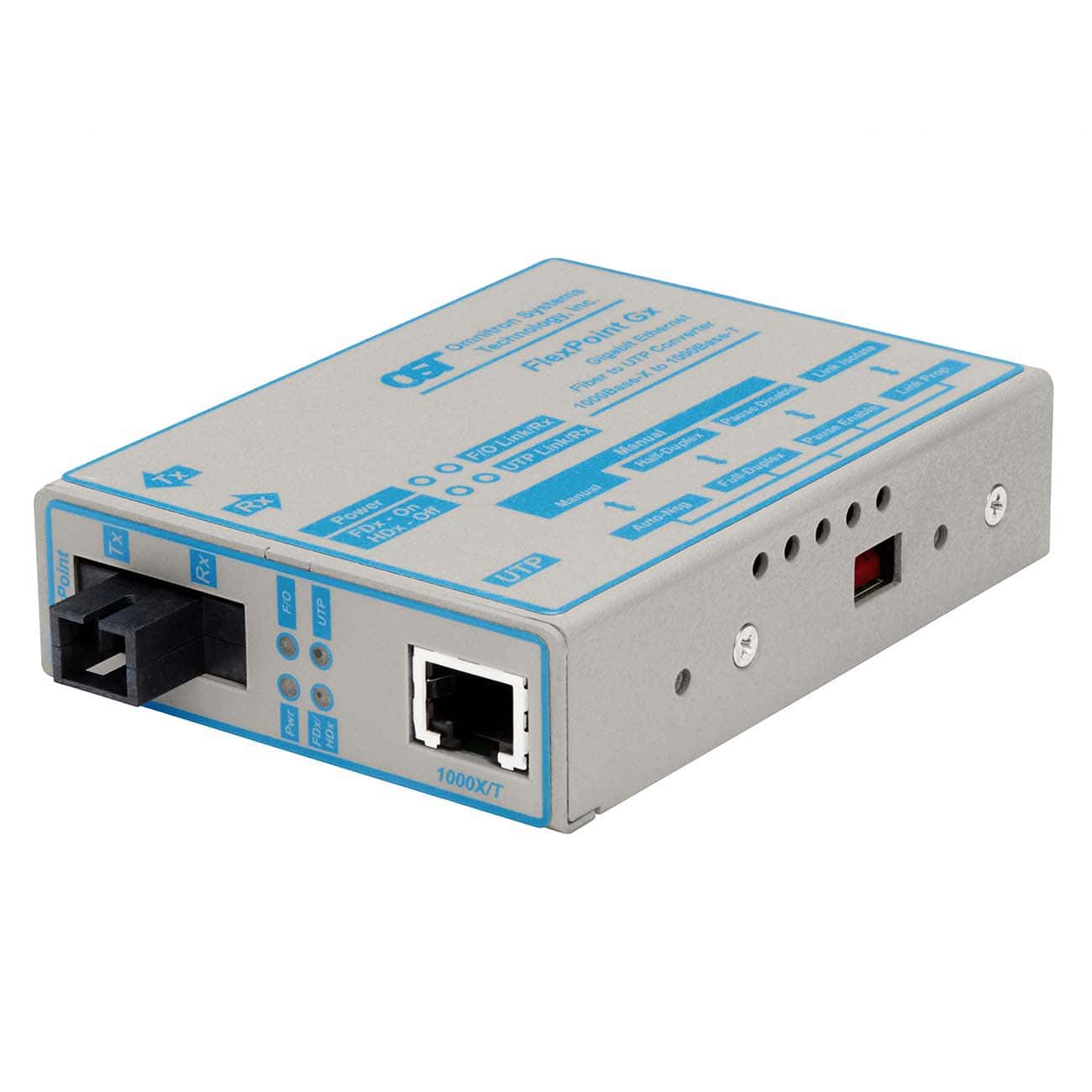

FlexPoint® Gx: 1 Gbps RJ-45 to 1 Gbps, SC, Single-Mode Single Fiber, 1310nm / 1550nm, 20km, JPN 100-240VAC, Wide Temperature -40 to 60 deg C

Description	FlexPoint Gx 1000BASE-T Copper to 1000BASE-X Fiber Media Converter
Standard Compliances	IEEE 802.3
Regulatory Compliances	Safety: EMI: ACT:	UL, cUL, CE, UKCA FCC Class A TAA, BAA, NDAA
Environmental	RoHS, WEEE, REACH
Frame Size	Supports frame sizes up to 10K bytes
Port Types	Copper: Fiber:	1000BASE-T (RJ-45) 1000BASE-X (ST, SC, LC, MT-RJ)
Cable Types	Copper: Fiber:	EIA/TIA 568A/B, Cat 5 UTP and higher Multimode: 50/125µm, 62.5/125µm Single-mode: 9/125µm
AC Power Requirements	AC Adapter:	100 - 240VAC/50 - 60Hz 0.04A @ 120VAC (typical)
DC Power Requirements	Voltage Range: Nominal Voltage: Nominal Power:	Barrel Connector 6.0 to 15VDC 9VDC 0.4A @ 9VDC	Molex Connector 4.75 to 5.25VDC 5VDC 0.6A @ 5VDC
Dimensions W x D x H	3.0" x 4.0" x 1.0" (76.2 mm x 101.6 mm x 25.4 mm)
Weight	w/o AC Adapter:	6 oz. (170.1 grams)
Temperature	Commercial: Wide: Storage:	0 to 50°C -40 to 60°C -40 to 80° C
Humidity	5% to 95% (non-condensing)
Altitude	-100m to 4,000m (operational)
MTBF (hrs)	w/o AC Adapter (-0): w/ AC Adapter (-1): w/ AC Adapter (-2):	990,000 250,000 100,000
Warranty	Lifetime warranty with 24/7/365 free Technical Support
