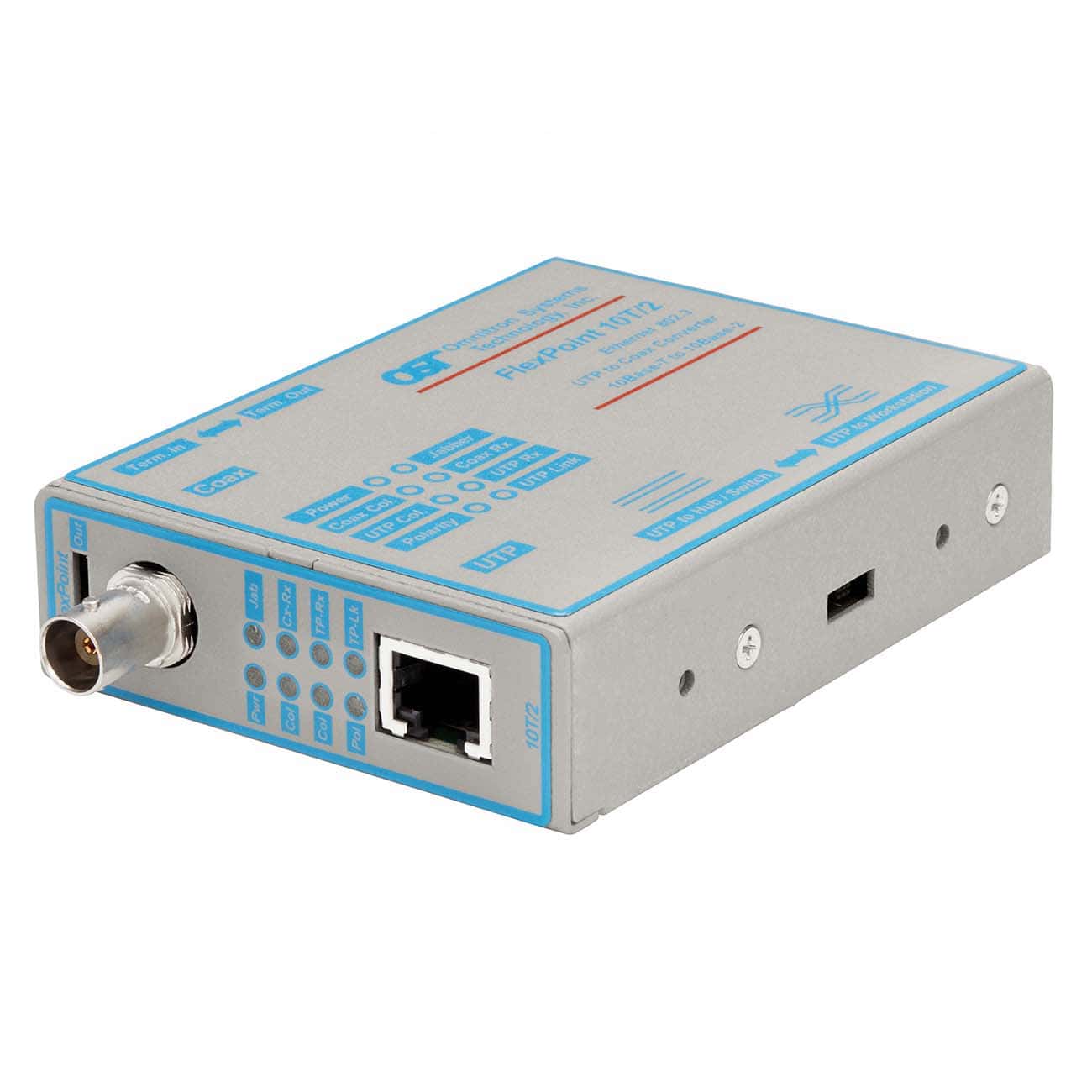

10BASE-T Copper to 10BASE-2 Coax Media Converter

| |

FlexPoint® 10T/2: 10 Mbps RJ-45 to 10 Mbps, , , , , Univ 100-240VAC, Commercial Temperature 0 to 50 deg C

Description	FlexPoint 10T/2 10BASE-T Copper to 10BASE-2 Coax Media Converter
Standard Compliances	IEEE 802.3
Regulatory Compliances	Safety: EMI: ACT:	UL, cUL, CE, UKCA FCC Class A TAA, BAA, NDAA
Environmental	RoHS, WEEE, REACH
Port Types	Coax: Copper:	10BASE-2 (BNC) 10BASE-T (RJ-45)
Cable Types	Coax: Copper:	50 ohm, RG-58/U, RG-58C/U or equivalent EIA/TIA 568A/B, Cat 3 UTP and higher
AC Power Requirements	AC Adapter:	100 - 240VAC/50 - 60Hz 0.09A @ 120VAC (typical)
DC Power Requirements	Voltage Range: Nominal Voltage: Nominal Power:	Barrel Connector 8.0 to 15.0VDC 9VDC 0.47A @ 9VDC	Molex Connector 4.75 to 5.25VDC 5VDC 0.84A @ 5VDC
Dimensions W x D x H	3.0" x 4.0" x 1.0" (76.2 mm x 101.6 mm x 25.4 mm)
Weight	Without AC Adapter:	6 oz. (170.1 grams)
Temperature	Commercial: Wide: Storage:	0 to 50°C -40 to 60°C -40 to 80° C
Humidity	5% to 95% (non-condensing)
Altitude	-100m to 4,000m (operational)
MTBF (hrs)	Without AC Adapter (-0): With AC Adapter (-1): With AC Adapter (-2):	1,200,000 250,000 100,000
Warranty	Lifetime warranty with 24/7/365 free Technical Support
