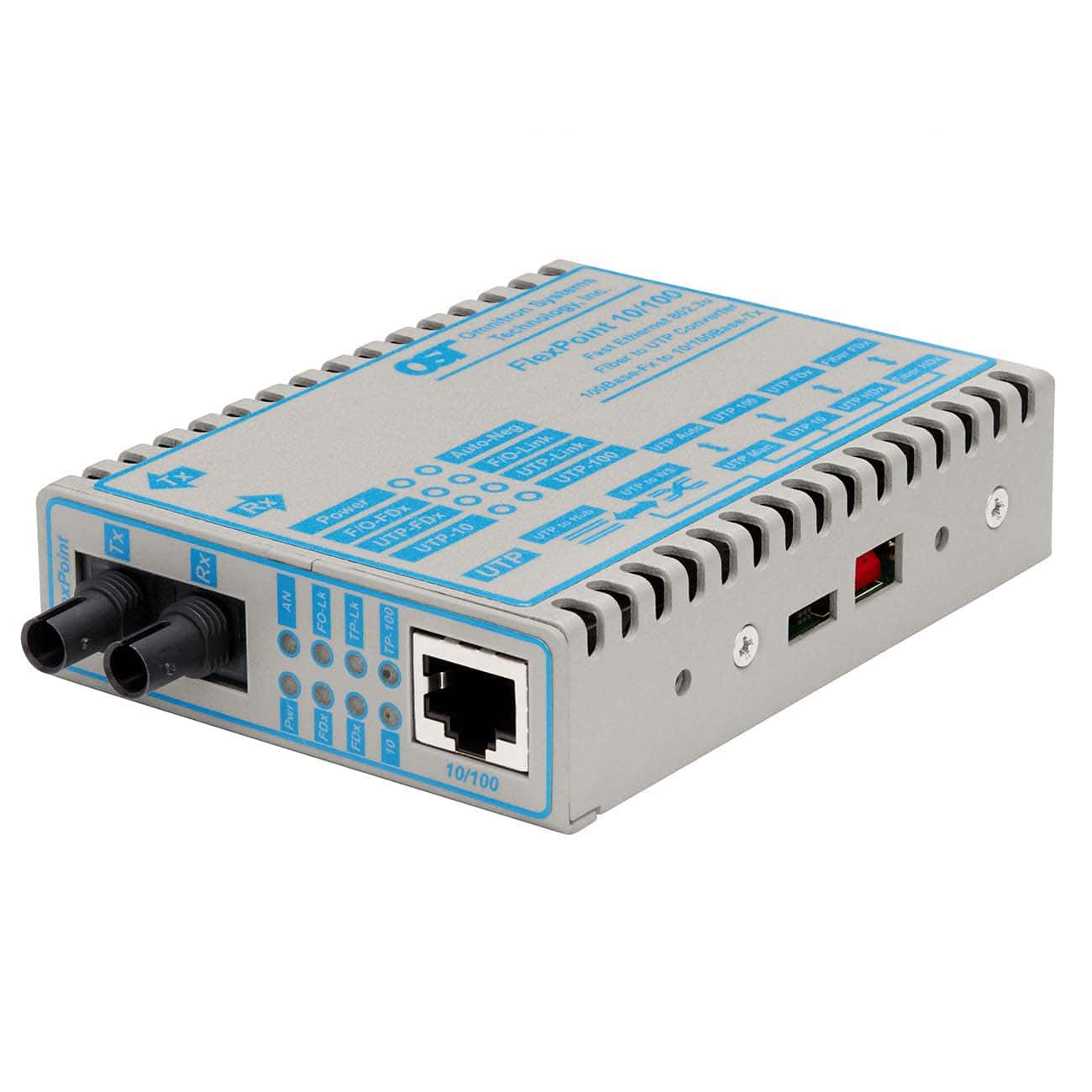

Unmanaged 10/100 Fiber to Ethernet Media Converter

| |

FlexPoint® 10/100: 10/100 Mbps RJ-45 to 100 Mbps, ST, Multimode Dual Fiber, 1310nm, 5km, Univ 100-240VAC, Commercial Temperature 0 to 50 deg C

Description	FlexPoint 10/100 10/100BASE-T Copper to 100BASE-FX Fiber Media Converter
Standard Compliances	IEEE 802.3
Regulatory Compliances	Safety: EMI: ACT	UL, cUL, CE, UKCA FCC Class A TAA, BAA, NDAA
Environmental	RoHS, WEEE, REACH
Frame Size	Up to 1536 bytes
Port Types	Copper: Fiber:	10/100BASE-T (RJ-45) 100BASE-FX (ST, SC, LC, SFP) 100BASE-BX (SC, SFP) Single-fiber
Cable Types	Copper: Fiber:	EIA/TIA 568A/B, Cat 5 UTP and higher Multimode: 50/125µm, 62.5/125µm Single-mode: 9/125µm
AC Power Requirements	AC Adapter:	100 - 240VAC/50 - 60Hz 0.06A @ 120VAC (typical)
DC Power Requirements	Voltage Range: Nominal Voltage: Nominal Power:	Terminal or Barrel Connector 5.0 to 32VDC 9VDC 0.5A @ 9VDC	Molex Connector 4.75 to 5.25VDC 5VDC 0.8A @ 5VDC
Dimensions W x D X H	3.0" x 4.0" x 1.0" (76.2 mm x 101.6 mm x 25.4 mm)
Weight	Without AC Adapter:	6 oz. (170.1 grams)
Temperature	Commercial: Wide: Extended: Storage:	0 to 50°C -40 to 60°C -40 to 75° C -40 to 80° C
Humidity	5% to 95% (non-condensing)
Altitude	-100m to 4,000m (operational)
MTBF (hrs)	w/o AC Adapter (-0, -9): w/ AC Adapter (-1): w/ AC Adapter (-2):	1,100,000 250,000 100,000
Warranty	Lifetime warranty with 24/7/365 free Technical Support

10BASE-T or 100BASE-T to 100BASE-X Ethernet Media Converter
